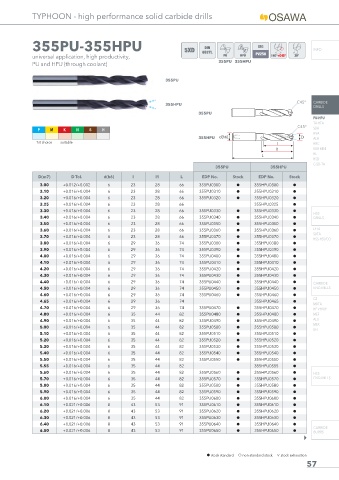

TYPHOON - high performance solid carbide drills

355PU-355HPU 5XD DIN INFO

universal application, high productivity, 6537L 140°+C45°
355PU 355HPU
PU and HPU (through coolant)

355PU

C45° CARBIDE
355HPU
DRILLS
355PU
PU-HPU
TA-HTA
C45°
P M K N S H SUH
HVA
H H H I H
355HPU ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
355PU 355HPU
D(m7) D Tol. d(h6) l l1 L EDP No. Stock EDP No. Stock
3.00 +0.012/+0.002 6 23 28 66 355PU0300 h 355HPU0300 h
3.10 +0.016/+0.004 6 23 28 66 355PU0310 h 355HPU0310 h
3.20 +0.016/+0.004 6 23 28 66 355PU0320 h 355HPU0320 h
3.25 +0.016/+0.004 6 23 28 66 355HPU0325 h
3.30 +0.016/+0.004 6 23 28 66 355PU0330 h 355HPU0330 h
HSS
3.40 +0.016/+0.004 6 23 28 66 355PU0340 h 355HPU0340 h DRILLS
3.50 +0.016/+0.004 6 23 28 66 355PU0350 h 355HPU0350 h
3.60 +0.016/+0.004 6 23 28 66 355PU0360 h 355HPU0360 h LFTA
SUTA
3.70 +0.016/+0.004 6 23 28 66 355PU0370 h 355HPU0370 h
HSS-HSS/CO
3.80 +0.016/+0.004 6 29 36 74 355PU0380 h 355HPU0380 h
3.90 +0.016/+0.004 6 29 36 74 355PU0390 h 355HPU0390 h
4.00 +0.016/+0.004 6 29 36 74 355PU0400 h 355HPU0400 h
4.10 +0.016/+0.004 6 29 36 74 355PU0410 h 355HPU0410 h
4.20 +0.016/+0.004 6 29 36 74 355PU0420 h 355HPU0420 h
4.30 +0.016/+0.004 6 29 36 74 355PU0430 h 355HPU0430 h
4.40 +0.016/+0.004 6 29 36 74 355PU0440 h 355HPU0440 h CARBIDE
4.50 +0.016/+0.004 6 29 36 74 355PU0450 h 355HPU0450 h END-MILLS
4.60 +0.016/+0.004 6 29 36 74 355PU0460 h 355HPU0460 h
G2
4.65 +0.016/+0.004 6 29 36 74 355HPU0465 h
MDTA
4.70 +0.016/+0.004 6 29 36 74 355PU0470 h 355HPU0470 h HF VH/UP
4.80 +0.016/+0.004 6 35 44 82 355PU0480 h 355HPU0480 h MEF
4.90 +0.016/+0.004 6 35 44 82 355PU0490 h 355HPU0490 h ALU
MEX
5.00 +0.016/+0.004 6 35 44 82 355PU0500 h 355HPU0500 h
UH
5.10 +0.016/+0.004 6 35 44 82 355PU0510 h 355HPU0510 h
5.20 +0.016/+0.004 6 35 44 82 355PU0520 h 355HPU0520 h
5.30 +0.016/+0.004 6 35 44 82 355PU0530 h 355HPU0530 h
5.40 +0.016/+0.004 6 35 44 82 355PU0540 h 355HPU0540 h
5.50 +0.016/+0.004 6 35 44 82 355PU0550 h 355HPU0550 h
5.55 +0.016/+0.004 6 35 44 82 355HPU0555 h
5.60 +0.016/+0.004 6 35 44 82 355PU0560 h 355HPU0560 h HSS
5.70 +0.016/+0.004 6 35 44 82 355PU0570 h 355HPU0570 h END-MILLS
5.80 +0.016/+0.004 6 35 44 82 355PU0580 h 355HPU0580 h
5.90 +0.016/+0.004 6 35 44 82 355PU0590 h 355HPU0590 h
6.00 +0.016/+0.004 6 35 44 82 355PU0600 h 355HPU0600 h
6.10 +0.021/+0.006 8 43 53 91 355PU0610 h 355HPU0610 h
6.20 +0.021/+0.006 8 43 53 91 355PU0620 h 355HPU0620 h
6.30 +0.021/+0.006 8 43 53 91 355PU0630 h 355HPU0630 h
6.40 +0.021/+0.006 8 43 53 91 355PU0640 h 355HPU0640 h
CARBIDE
6.50 +0.021/+0.006 8 43 53 91 355PU0650 h 355HPU0650 h BURRS

h stock standard f non-standard stock m stock exhaustion
