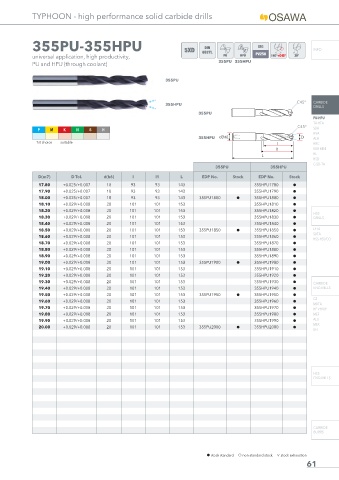

TYPHOON - high performance solid carbide drills

355PU-355HPU 5XD DIN INFO

universal application, high productivity, 6537L 140°+C45°
355PU 355HPU
PU and HPU (through coolant)

355PU

C45° CARBIDE
355HPU
DRILLS
355PU
PU-HPU
TA-HTA
C45°
P M K N S H SUH
HVA
H H H I H
355HPU ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
355PU 355HPU
D(m7) D Tol. d(h6) l l1 L EDP No. Stock EDP No. Stock
17.80 +0.025/+0.007 18 93 93 143 355HPU1780 h
17.90 +0.025/+0.007 18 93 93 143 355HPU1790 h
18.00 +0.025/+0.007 18 93 93 143 355PU1800 h 355HPU1800 h
18.10 +0.029/+0.008 20 101 101 153 355HPU1810 h
18.20 +0.029/+0.008 20 101 101 153 355HPU1820 h
