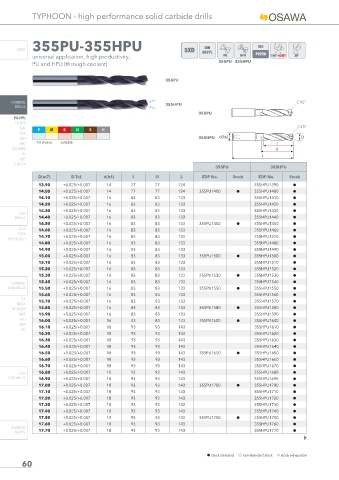

TYPHOON - high performance solid carbide drills

INFO 355PU-355HPU 5XD DIN

universal application, high productivity, 6537L 140°+C45°
355PU 355HPU
PU and HPU (through coolant)

355PU

CARBIDE 355HPU C45°
DRILLS
355PU
PU-HPU
TA-HTA
C45°
SUH
P M K N S H
HVA
ALH H H H I H 355HPU
HRC H 1st choice I suitable
SUH MINI
HL
HSD
C-SD-TA
355PU 355HPU
D(m7) D Tol. d(h6) l l1 L EDP No. Stock EDP No. Stock
13.90 +0.025/+0.007 14 77 77 124 355HPU1390 h
14.00 +0.025/+0.007 14 77 77 124 355PU1400 h 355HPU1400 h
14.10 +0.025/+0.007 16 83 83 133 355HPU1410 h
14.20 +0.025/+0.007 16 83 83 133 355HPU1420 h
14.30 +0.025/+0.007 16 83 83 133 355HPU1430 h
HSS
DRILLS 14.40 +0.025/+0.007 16 83 83 133 355HPU1440 h
14.50 +0.025/+0.007 16 83 83 133 355PU1450 h 355HPU1450 h
LFTA
14.60 +0.025/+0.007 16 83 83 133 355HPU1460 h
SUTA
14.70 +0.025/+0.007 16 83 83 133 355HPU1470 h
HSS-HSS/CO
14.80 +0.025/+0.007 16 83 83 133 355HPU1480 h
14.90 +0.025/+0.007 16 83 83 133 355HPU1490 h
15.00 +0.025/+0.007 16 83 83 133 355PU1500 h 355HPU1500 h
15.10 +0.025/+0.007 16 83 83 133 355HPU1510 h
15.20 +0.025/+0.007 16 83 83 133 355HPU1520 h
15.30 +0.025/+0.007 16 83 83 133 355PU1530 h 355HPU1530 h
CARBIDE 15.40 +0.025/+0.007 16 83 83 133 355HPU1540 h
END-MILLS 15.50 +0.025/+0.007 16 83 83 133 355PU1550 h 355HPU1550 h
15.60 +0.025/+0.007 16 83 83 133 355HPU1560 h
G2
MDTA 15.70 +0.025/+0.007 16 83 83 133 355HPU1570 h
HF VH/UP 15.80 +0.025/+0.007 16 83 83 133 355PU1580 h 355HPU1580 h
MEF 15.90 +0.025/+0.007 16 83 83 133 355HPU1590 h
ALU 16.00 +0.025/+0.007 16 83 83 133 355PU1600 h 355HPU1600 h
MEX
16.10 +0.025/+0.007 18 93 93 143 355HPU1610 h
UH
16.20 +0.025/+0.007 18 93 93 143 355HPU1620 h
16.30 +0.025/+0.007 18 93 93 143 355HPU1630 h
16.40 +0.025/+0.007 18 93 93 143 355HPU1640 h
16.50 +0.025/+0.007 18 93 93 143 355PU1650 h 355HPU1650 h
16.60 +0.025/+0.007 18 93 93 143 355HPU1660 h
16.70 +0.025/+0.007 18 93 93 143 355HPU1670 h
HSS 16.80 +0.025/+0.007 18 93 93 143 355HPU1680 h
END-MILLS 16.90 +0.025/+0.007 18 93 93 143 355HPU1690 h
17.00 +0.025/+0.007 18 93 93 143 355PU1700 h 355HPU1700 h
17.10 +0.025/+0.007 18 93 93 143 355HPU1710 h
17.20 +0.025/+0.007 18 93 93 143 355HPU1720 h
17.30 +0.025/+0.007 18 93 93 143 355HPU1730 h
17.40 +0.025/+0.007 18 93 93 143 355HPU1740 h
17.50 +0.025/+0.007 18 93 93 143 355PU1750 h 355HPU1750 h
17.60 +0.025/+0.007 18 93 93 143 355HPU1760 h
CARBIDE
BURRS 17.70 +0.025/+0.007 18 93 93 143 355HPU1770 h

h stock standard f non-standard stock m stock exhaustion
