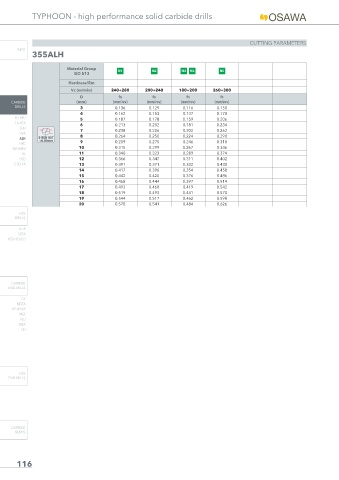

Page 84 - TyphoonOsawa

TYPHOON - high performance solid carbide drills

CUTTING PARAMETERS
INFO
355ALH

Material Group N1 N2 N3 N4 N5
ISO 513
Hardness/Rm
Vc (m/min) 240÷280 200÷240 180÷200 260÷300
D fn fn fn fn
CARBIDE (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev)
DRILLS 3 0.136 0.129 0.116 0.150
4 0.162 0.153 0.137 0.178
PU-HPU 5 0.187 0.178 0.159 0.206
TA-HTA
6 0.213 0.202 0.181 0.234
SUH
7 0.238 0.226 0.202 0.262
HVA
ALH Ø RUN OUT 8 0.264 0.250 0.224 0.290
<0.02mm 9 0.289 0.275 0.246 0.318
HRC
SUH MINI 10 0.315 0.299 0.267 0.346
HL 11 0.340 0.323 0.289 0.374
HSD 12 0.366 0.347 0.311 0.402
C-SD-TA 13 0.391 0.371 0.332 0.430
14 0.417 0.396 0.354 0.458
15 0.442 0.420 0.376 0.486
16 0.468 0.444 0.397 0.514
17 0.493 0.468 0.419 0.542
18 0.519 0.493 0.441 0.570
19 0.544 0.517 0.462 0.598
20 0.570 0.541 0.484 0.626
