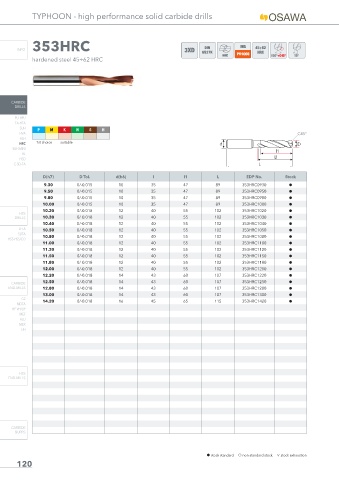

TYPHOON - high performance solid carbide drills

INFO 353HRC 3XD DIN
6537K
150°+C45°
hardened steel 45÷62 HRC

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA C45°
ALH H
HRC H 1st choice I suitable
SUH MINI
HL
HSD
C-SD-TA
D(h7) D Tol. d(h6) l l1 L EDP No. Stock
9.30 0/-0.015 10 35 47 89 353HRC0930 h
9.50 0/-0.015 10 35 47 89 353HRC0950 h
9.80 0/-0.015 10 35 47 89 353HRC0980 h
10.00 0/-0.015 10 35 47 89 353HRC1000 h
10.20 0/-0.018 12 40 55 102 353HRC1020 h
HSS
DRILLS 10.30 0/-0.018 12 40 55 102 353HRC1030 h
10.40 0/-0.018 12 40 55 102 353HRC1040 h
LFTA
10.50 0/-0.018 12 40 55 102 353HRC1050 h
SUTA
10.80 0/-0.018 12 40 55 102 353HRC1080 h
HSS-HSS/CO
11.00 0/-0.018 12 40 55 102 353HRC1100 h
11.20 0/-0.018 12 40 55 102 353HRC1120 h
11.50 0/-0.018 12 40 55 102 353HRC1150 h
11.80 0/-0.018 12 40 55 102 353HRC1180 h
12.00 0/-0.018 12 40 55 102 353HRC1200 h
12.20 0/-0.018 14 43 60 107 353HRC1220 h
CARBIDE 12.50 0/-0.018 14 43 60 107 353HRC1250 h
END-MILLS 12.80 0/-0.018 14 43 60 107 353HRC1280 h
13.00 0/-0.018 14 43 60 107 353HRC1300 h
G2
MDTA 14.20 0/-0.018 16 45 65 115 353HRC1420 h
HF VH/UP
MEF
ALU
MEX
UH

HSS
END-MILLS

CARBIDE
BURRS

h stock standard f non-standard stock m stock exhaustion
120
