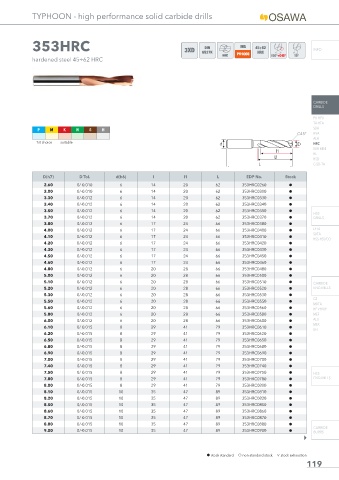

TYPHOON - high performance solid carbide drills

353HRC 3XD DIN INFO
6537K
150°+C45°
hardened steel 45÷62 HRC

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
C45° HVA
H
ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
D(h7) D Tol. d(h6) l l1 L EDP No. Stock
2.60 0/-0.010 6 14 20 62 353HRC0260 h
3.00 0/-0.010 6 14 20 62 353HRC0300 h
3.30 0/-0.012 6 14 20 62 353HRC0330 h
3.40 0/-0.012 6 14 20 62 353HRC0340 h
3.50 0/-0.012 6 14 20 62 353HRC0350 h
HSS
3.70 0/-0.012 6 14 20 62 353HRC0370 h DRILLS
3.80 0/-0.012 6 17 24 66 353HRC0380 h
4.00 0/-0.012 6 17 24 66 353HRC0400 h LFTA
SUTA
4.10 0/-0.012 6 17 24 66 353HRC0410 h
HSS-HSS/CO
4.20 0/-0.012 6 17 24 66 353HRC0420 h
4.30 0/-0.012 6 17 24 66 353HRC0430 h
4.50 0/-0.012 6 17 24 66 353HRC0450 h
4.60 0/-0.012 6 17 24 66 353HRC0460 h
4.80 0/-0.012 6 20 28 66 353HRC0480 h
5.00 0/-0.012 6 20 28 66 353HRC0500 h
5.10 0/-0.012 6 20 28 66 353HRC0510 h CARBIDE
5.20 0/-0.012 6 20 28 66 353HRC0520 h END-MILLS
5.30 0/-0.012 6 20 28 66 353HRC0530 h
G2
5.50 0/-0.012 6 20 28 66 353HRC0550 h
MDTA
5.60 0/-0.012 6 20 28 66 353HRC0560 h HF VH/UP
5.80 0/-0.012 6 20 28 66 353HRC0580 h MEF
6.00 0/-0.012 6 20 28 66 353HRC0600 h ALU
MEX
6.10 0/-0.015 8 29 41 79 353HRC0610 h
UH
6.20 0/-0.015 8 29 41 79 353HRC0620 h
6.50 0/-0.015 8 29 41 79 353HRC0650 h
6.80 0/-0.015 8 29 41 79 353HRC0680 h
6.90 0/-0.015 8 29 41 79 353HRC0690 h
7.00 0/-0.015 8 29 41 79 353HRC0700 h
7.40 0/-0.015 8 29 41 79 353HRC0740 h
7.50 0/-0.015 8 29 41 79 353HRC0750 h HSS
7.80 0/-0.015 8 29 41 79 353HRC0780 h END-MILLS
8.00 0/-0.015 8 29 41 79 353HRC0800 h
8.10 0/-0.015 10 35 47 89 353HRC0810 h
8.20 0/-0.015 10 35 47 89 353HRC0820 h
8.50 0/-0.015 10 35 47 89 353HRC0850 h
8.60 0/-0.015 10 35 47 89 353HRC0860 h
8.70 0/-0.015 10 35 47 89 353HRC0870 h
8.80 0/-0.015 10 35 47 89 353HRC0880 h
CARBIDE
9.00 0/-0.015 10 35 47 89 353HRC0900 h BURRS

h stock standard f non-standard stock m stock exhaustion
