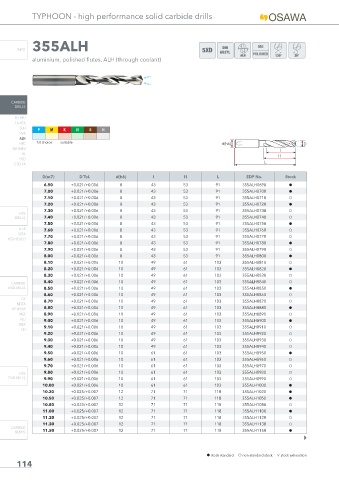

TYPHOON - high performance solid carbide drills

INFO 355ALH 5XD 6537L
DIN
aluminium, polished flutes, ALH (through coolant) POLISHED

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
ALH H
HRC H 1st choice I suitable
SUH MINI
HL
HSD
C-SD-TA
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
6.90 +0.021/+0.006 8 43 53 91 355ALH0690 h
7.00 +0.021/+0.006 8 43 53 91 355ALH0700 h
7.10 +0.021/+0.006 8 43 53 91 355ALH0710 f
7.20 +0.021/+0.006 8 43 53 91 355ALH0720 h
7.30 +0.021/+0.006 8 43 53 91 355ALH0730 f
HSS
DRILLS 7.40 +0.021/+0.006 8 43 53 91 355ALH0740 f
7.50 +0.021/+0.006 8 43 53 91 355ALH0750 h
LFTA
7.60 +0.021/+0.006 8 43 53 91 355ALH0760 f
SUTA
7.70 +0.021/+0.006 8 43 53 91 355ALH0770 f
HSS-HSS/CO
7.80 +0.021/+0.006 8 43 53 91 355ALH0780 h
7.90 +0.021/+0.006 8 43 53 91 355ALH0790 f
8.00 +0.021/+0.006 8 43 53 91 355ALH0800 h
8.10 +0.021/+0.006 10 49 61 103 355ALH0810 f
8.20 +0.021/+0.006 10 49 61 103 355ALH0820 h
8.30 +0.021/+0.006 10 49 61 103 355ALH0830 f
CARBIDE 8.40 +0.021/+0.006 10 49 61 103 355ALH0840 f
END-MILLS 8.50 +0.021/+0.006 10 49 61 103 355ALH0850 h
8.60 +0.021/+0.006 10 49 61 103 355ALH0860 f
G2
MDTA 8.70 +0.021/+0.006 10 49 61 103 355ALH0870 f
HF VH/UP 8.80 +0.021/+0.006 10 49 61 103 355ALH0880 h
MEF 8.90 +0.021/+0.006 10 49 61 103 355ALH0890 f
ALU 9.00 +0.021/+0.006 10 49 61 103 355ALH0900 h
MEX
9.10 +0.021/+0.006 10 49 61 103 355ALH0910 f
UH
9.20 +0.021/+0.006 10 49 61 103 355ALH0920 f
9.30 +0.021/+0.006 10 49 61 103 355ALH0930 f
9.40 +0.021/+0.006 10 49 61 103 355ALH0940 f
9.50 +0.021/+0.006 10 61 61 103 355ALH0950 h
9.60 +0.021/+0.006 10 61 61 103 355ALH0960 f
9.70 +0.021/+0.006 10 61 61 103 355ALH0970 f
HSS 9.80 +0.021/+0.006 10 61 61 103 355ALH0980 f
END-MILLS 9.90 +0.021/+0.006 10 61 61 103 355ALH0990 f
10.00 +0.021/+0.006 10 61 61 103 355ALH1000 h
10.20 +0.025/+0.007 12 71 71 118 355ALH1020 h
10.50 +0.025/+0.007 12 71 71 118 355ALH1050 h
10.80 +0.025/+0.007 12 71 71 118 355ALH1080 f
11.00 +0.025/+0.007 12 71 71 118 355ALH1100 h
11.20 +0.025/+0.007 12 71 71 118 355ALH1120 f
11.30 +0.025/+0.007 12 71 71 118 355ALH1130 f
CARBIDE
BURRS 11.50 +0.025/+0.007 12 71 71 118 355ALH1150 h

h stock standard f non-standard stock m stock exhaustion
