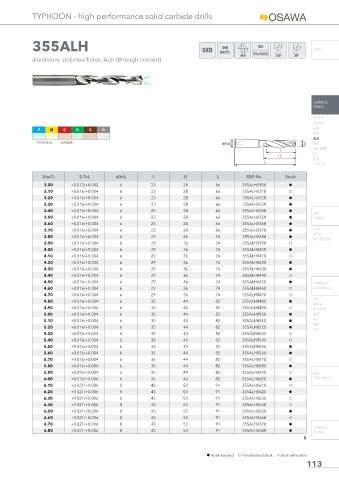

TYPHOON - high performance solid carbide drills

355ALH 5XD 6537L INFO
DIN
aluminium, polished flutes, ALH (through coolant) POLISHED

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
H
ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
3.00 +0.012/+0.002 6 23 28 66 355ALH0300 h
3.10 +0.016/+0.004 6 23 28 66 355ALH0310 f
3.20 +0.016/+0.004 6 23 28 66 355ALH0320 h
3.30 +0.016/+0.004 6 23 28 66 355ALH0330 h
3.40 +0.016/+0.004 6 23 28 66 355ALH0340 h
