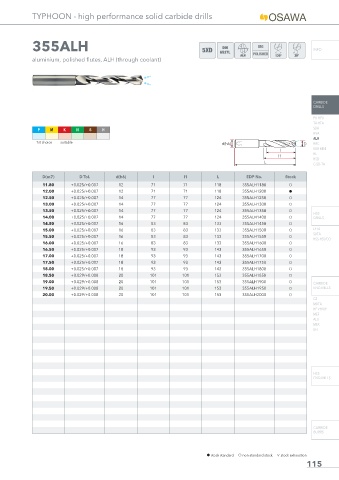

TYPHOON - high performance solid carbide drills

355ALH 5XD 6537L INFO
DIN
aluminium, polished flutes, ALH (through coolant) POLISHED

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
H
ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
11.80 +0.025/+0.007 12 71 71 118 355ALH1180 f
12.00 +0.025/+0.007 12 71 71 118 355ALH1200 h
12.50 +0.025/+0.007 14 77 77 124 355ALH1250 f
13.00 +0.025/+0.007 14 77 77 124 355ALH1300 f
13.50 +0.025/+0.007 14 77 77 124 355ALH1350 f
HSS
14.00 +0.025/+0.007 14 77 77 124 355ALH1400 f DRILLS
14.50 +0.025/+0.007 16 83 83 133 355ALH1450 f
15.00 +0.025/+0.007 16 83 83 133 355ALH1500 f LFTA
SUTA
15.50 +0.025/+0.007 16 83 83 133 355ALH1550 f
HSS-HSS/CO
16.00 +0.025/+0.007 16 83 83 133 355ALH1600 f
16.50 +0.025/+0.007 18 93 93 143 355ALH1650 f
17.00 +0.025/+0.007 18 93 93 143 355ALH1700 f
17.50 +0.025/+0.007 18 93 93 143 355ALH1750 f
18.00 +0.025/+0.007 18 93 93 143 355ALH1800 f
18.50 +0.029/+0.008 20 101 101 153 355ALH1850 f
19.00 +0.029/+0.008 20 101 101 153 355ALH1900 f CARBIDE
19.50 +0.029/+0.008 20 101 101 153 355ALH1950 f END-MILLS
20.00 +0.029/+0.008 20 101 101 153 355ALH2000 f
G2
MDTA
HF VH/UP
MEF
ALU
MEX
UH

HSS
END-MILLS

CARBIDE
BURRS

h stock standard f non-standard stock m stock exhaustion
