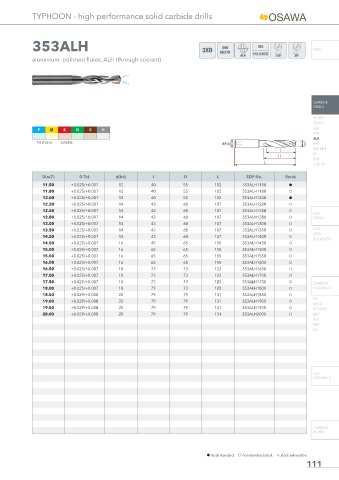

TYPHOON - high performance solid carbide drills

353ALH 3XD 6537K INFO
DIN
aluminium, polished flutes, ALH (through coolant) POLISHED

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
H
ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
11.50 +0.025/+0.007 12 40 55 102 353ALH1150 h
11.80 +0.025/+0.007 12 40 55 102 353ALH1180 f
12.00 +0.025/+0.007 12 40 55 102 353ALH1200 h
12.20 +0.025/+0.007 14 43 60 107 353ALH1220 f
12.50 +0.025/+0.007 14 43 60 107 353ALH1250 f
HSS
12.80 +0.025/+0.007 14 43 60 107 353ALH1280 f DRILLS
13.00 +0.025/+0.007 14 43 60 107 353ALH1300 f
13.50 +0.025/+0.007 14 43 60 107 353ALH1350 f LFTA
SUTA
14.00 +0.025/+0.007 14 43 60 107 353ALH1400 f
HSS-HSS/CO
14.50 +0.025/+0.007 16 45 65 115 353ALH1450 f
15.00 +0.025/+0.007 16 65 65 115 353ALH1500 f
15.50 +0.025/+0.007 16 65 65 115 353ALH1550 f
16.00 +0.025/+0.007 16 65 65 115 353ALH1600 f
16.50 +0.025/+0.007 18 73 73 123 353ALH1650 f
17.00 +0.025/+0.007 18 73 73 123 353ALH1700 f
17.50 +0.025/+0.007 18 73 73 123 353ALH1750 f CARBIDE
18.00 +0.025/+0.007 18 73 73 123 353ALH1800 f END-MILLS
18.50 +0.029/+0.008 20 79 79 131 353ALH1850 f
G2
19.00 +0.029/+0.008 20 79 79 131 353ALH1900 f
MDTA
19.50 +0.029/+0.008 20 79 79 131 353ALH1950 f HF VH/UP
20.00 +0.029/+0.008 20 79 79 131 353ALH2000 f MEF
ALU
MEX
UH

HSS
END-MILLS

CARBIDE
BURRS

h stock standard f non-standard stock m stock exhaustion
