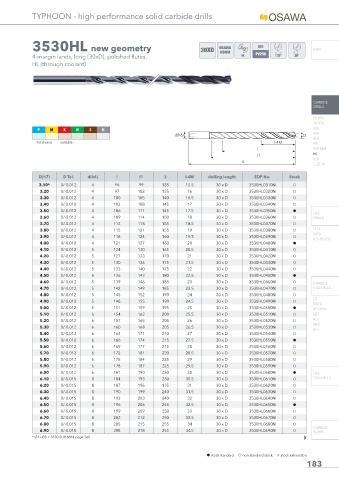

TYPHOON - high performance solid carbide drills

3530HL new geometry 30XD OSAWA INFO
NORM
4-margin lands, long (30xD), polished flutes, 135°
HL (through coolant)

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
H H H I I
ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
D(h7) D Tol. d(h6) l l1 L l-4M drilling length EDP No. Stock
3.10* 0/-0.012 4 94 99 135 15.5 30 x D 3530HL0310N f
3.20 0/-0.012 4 97 102 135 16 30 x D 3530HL0320N f
3.30 0/-0.012 4 100 105 140 16.5 30 x D 3530HL0330N f
3.40 0/-0.012 4 103 108 145 17 30 x D 3530HL0340N f
3.50 0/-0.012 4 106 111 145 17.5 30 x D 3530HL0350N h
HSS
3.60 0/-0.012 4 109 114 150 18 30 x D 3530HL0360N f DRILLS
3.70 0/-0.012 4 112 118 155 18.5 30 x D 3530HL0370N f
3.80 0/-0.012 4 115 121 155 19 30 x D 3530HL0380N f LFTA
SUTA
3.90 0/-0.012 4 118 124 160 19.5 30 x D 3530HL0390N f
HSS-HSS/CO
4.00 0/-0.012 4 121 127 160 20 30 x D 3530HL0400N h
4.10 0/-0.012 5 124 130 165 20.5 30 x D 3530HL0410N f
4.20 0/-0.012 5 127 133 170 21 30 x D 3530HL0420N f
4.30 0/-0.012 5 130 136 175 21.5 30 x D 3530HL0430N f
4.40 0/-0.012 5 133 140 175 22 30 x D 3530HL0440N f
4.50 0/-0.012 5 136 143 180 22.5 30 x D 3530HL0450N h
4.60 0/-0.012 5 139 146 185 23 30 x D 3530HL0460N f CARBIDE
4.70 0/-0.012 5 142 149 185 23.5 30 x D 3530HL0470N f END-MILLS
4.80 0/-0.012 5 145 152 190 24 30 x D 3530HL0480N f
G2
4.90 0/-0.012 5 148 155 190 24.5 30 x D 3530HL0490N f
MDTA
5.00 0/-0.012 5 151 159 195 25 30 x D 3530HL0500N h HF VH/UP
5.10 0/-0.012 6 154 162 200 25.5 30 x D 3530HL0510N f MEF
5.20 0/-0.012 6 157 165 205 26 30 x D 3530HL0520N f ALU
MEX
5.30 0/-0.012 6 160 168 205 26.5 30 x D 3530HL0530N f
UH
5.40 0/-0.012 6 163 171 210 27 30 x D 3530HL0540N f
5.50 0/-0.012 6 166 174 215 27.5 30 x D 3530HL0550N h
5.60 0/-0.012 6 169 177 215 28 30 x D 3530HL0560N f
5.70 0/-0.012 6 172 181 220 28.5 30 x D 3530HL0570N f
5.80 0/-0.012 6 175 184 225 29 30 x D 3530HL0580N f
5.90 0/-0.012 6 178 187 225 29.5 30 x D 3530HL0590N f
6.00 0/-0.012 6 181 190 230 30 30 x D 3530HL0600N h HSS
6.10 0/-0.015 8 184 193 230 30.5 30 x D 3530HL0610N f END-MILLS
6.20 0/-0.015 8 187 196 135 31 30 x D 3530HL0620N f
6.30 0/-0.015 8 190 199 240 31.5 30 x D 3530HL0630N f
6.40 0/-0.015 8 193 203 240 32 30 x D 3530HL0640N f
6.50 0/-0.015 8 196 206 245 32.5 30 x D 3530HL0650N h
6.60 0/-0.015 8 199 209 250 33 30 x D 3530HL0660N f
6.70 0/-0.015 8 202 212 250 33.5 30 x D 3530HL0670N f
6.80 0/-0.015 8 205 215 255 34 30 x D 3530HL0680N f
CARBIDE
6.90 0/-0.015 8 208 218 255 34.5 30 x D 3530HL0690N f BURRS
* Ø1÷Ø3 = 3530 SUH MINI page 160

h stock standard f non-standard stock m stock exhaustion
