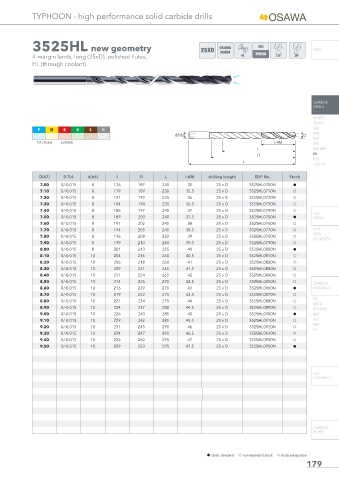

TYPHOON - high performance solid carbide drills

3525HL new geometry 25XD OSAWA INFO
NORM
4-margin lands, long (25xD), polished flutes, 135°
HL (through coolant)

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
H H H I I
ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
D(h7) D Tol. d(h6) l l1 L l-4M drilling length EDP No. Stock
7.00 0/-0.015 8 176 187 230 35 25 x D 3525HL0700N h
7.10 0/-0.015 8 179 189 230 35.5 25 x D 3525HL0710N f
7.20 0/-0.015 8 181 192 235 36 25 x D 3525HL0720N f
7.30 0/-0.015 8 184 194 235 36.5 25 x D 3525HL0730N f
7.40 0/-0.015 8 186 197 240 37 25 x D 3525HL0740N f
HSS
7.50 0/-0.015 8 189 200 240 37.5 25 x D 3525HL0750N h DRILLS
7.60 0/-0.015 8 191 202 245 38 25 x D 3525HL0760N f
7.70 0/-0.015 8 194 205 245 38.5 25 x D 3525HL0770N f LFTA
SUTA
7.80 0/-0.015 8 196 208 250 39 25 x D 3525HL0780N f
HSS-HSS/CO
7.90 0/-0.015 8 199 210 250 39.5 25 x D 3525HL0790N f
8.00 0/-0.015 8 201 213 255 40 25 x D 3525HL0800N h
8.10 0/-0.015 10 204 216 260 40.5 25 x D 3525HL0810N f
8.20 0/-0.015 10 206 218 260 41 25 x D 3525HL0820N f
8.30 0/-0.015 10 209 221 265 41.5 25 x D 3525HL0830N f
8.40 0/-0.015 10 211 224 265 42 25 x D 3525HL0840N f
8.50 0/-0.015 10 214 226 270 42.5 25 x D 3525HL0850N f
CARBIDE
8.60 0/-0.015 10 216 229 270 43 25 x D 3525HL0860N h END-MILLS
8.70 0/-0.015 10 219 232 275 43.5 25 x D 3525HL0870N f
G2
8.80 0/-0.015 10 221 234 275 44 25 x D 3525HL0880N f
MDTA
8.90 0/-0.015 10 224 237 280 44.5 25 x D 3525HL0890N f HF VH/UP
9.00 0/-0.015 10 226 240 285 45 25 x D 3525HL0900N h MEF
9.10 0/-0.015 10 229 242 285 45.5 25 x D 3525HL0910N f ALU
MEX
9.20 0/-0.015 10 231 245 290 46 25 x D 3525HL0920N f
UH
9.30 0/-0.015 10 234 247 290 46.5 25 x D 3525HL0930N f
9.40 0/-0.015 10 236 250 295 47 25 x D 3525HL0940N f
9.50 0/-0.015 10 239 253 295 47.5 25 x D 3525HL0950N h

HSS
END-MILLS

CARBIDE
BURRS

h stock standard f non-standard stock m stock exhaustion
