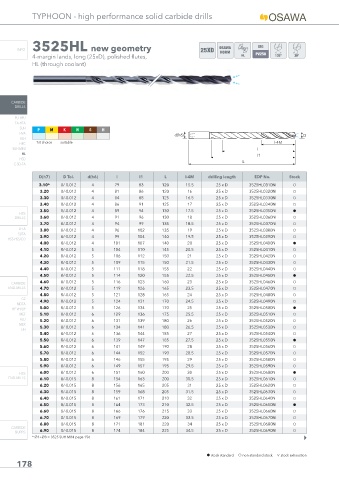

TYPHOON - high performance solid carbide drills

INFO 3525HL new geometry 25XD OSAWA
NORM
4-margin lands, long (25xD), polished flutes, 135°
HL (through coolant)

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
ALH H H H I I
HRC H 1st choice I suitable
SUH MINI
HL
HSD
C-SD-TA
D(h7) D Tol. d(h6) l l1 L l-4M drilling length EDP No. Stock
3.10* 0/-0.012 4 79 83 120 15.5 25 x D 3525HL0310N f
3.20 0/-0.012 4 81 86 120 16 25 x D 3525HL0320N f
3.30 0/-0.012 4 84 88 125 16.5 25 x D 3525HL0330N f
3.40 0/-0.012 4 86 91 125 17 25 x D 3525HL0340N f
3.50 0/-0.012 4 89 94 130 17.5 25 x D 3525HL0350N h
HSS
DRILLS 3.60 0/-0.012 4 91 96 130 18 25 x D 3525HL0360N f
3.70 0/-0.012 4 94 99 135 18.5 25 x D 3525HL0370N f
LFTA
3.80 0/-0.012 4 96 102 135 19 25 x D 3525HL0380N f
SUTA
3.90 0/-0.012 4 99 104 140 19.5 25 x D 3525HL0390N f
HSS-HSS/CO
4.00 0/-0.012 4 101 107 140 20 25 x D 3525HL0400N h
4.10 0/-0.012 5 104 110 145 20.5 25 x D 3525HL0410N f
4.20 0/-0.012 5 106 112 150 21 25 x D 3525HL0420N f
4.30 0/-0.012 5 109 115 150 21.5 25 x D 3525HL0430N f
4.40 0/-0.012 5 111 118 155 22 25 x D 3525HL0440N f
4.50 0/-0.012 5 114 120 155 22.5 25 x D 3525HL0450N h
CARBIDE 4.60 0/-0.012 5 116 123 160 23 25 x D 3525HL0460N f
END-MILLS 4.70 0/-0.012 5 119 126 165 23.5 25 x D 3525HL0470N f
4.80 0/-0.012 5 121 128 165 24 25 x D 3525HL0480N f
G2
MDTA 4.90 0/-0.012 5 124 131 170 24.5 25 x D 3525HL0490N f
HF VH/UP 5.00 0/-0.012 5 126 134 170 25 25 x D 3525HL0500N h
MEF 5.10 0/-0.012 6 129 136 175 25.5 25 x D 3525HL0510N f
ALU
5.20 0/-0.012 6 131 139 180 26 25 x D 3525HL0520N f
MEX
5.30 0/-0.012 6 134 141 180 26.5 25 x D 3525HL0530N f
UH
5.40 0/-0.012 6 136 144 185 27 25 x D 3525HL0540N f
5.50 0/-0.012 6 139 147 185 27.5 25 x D 3525HL0550N h
5.60 0/-0.012 6 141 149 190 28 25 x D 3525HL0560N f
5.70 0/-0.012 6 144 152 190 28.5 25 x D 3525HL0570N f
5.80 0/-0.012 6 146 155 195 29 25 x D 3525HL0580N f
5.90 0/-0.012 6 149 157 195 29.5 25 x D 3525HL0590N f
HSS 6.00 0/-0.012 6 151 160 200 30 25 x D 3525HL0600N h
END-MILLS 6.10 0/-0.015 8 154 163 200 30.5 25 x D 3525HL0610N f
6.20 0/-0.015 8 156 165 205 31 25 x D 3525HL0620N f
6.30 0/-0.015 8 159 168 205 31.5 25 x D 3525HL0630N f
6.40 0/-0.015 8 161 171 210 32 25 x D 3525HL0640N f
6.50 0/-0.015 8 164 173 210 32.5 25 x D 3525HL0650N h
6.60 0/-0.015 8 166 176 215 33 25 x D 3525HL0660N f
6.70 0/-0.015 8 169 179 220 33.5 25 x D 3525HL0670N f
6.80 0/-0.015 8 171 181 220 34 25 x D 3525HL0680N f
CARBIDE
BURRS 6.90 0/-0.015 8 174 184 225 34.5 25 x D 3525HL0690N f
* Ø1÷Ø3 = 3525 SUH MINI page 156
