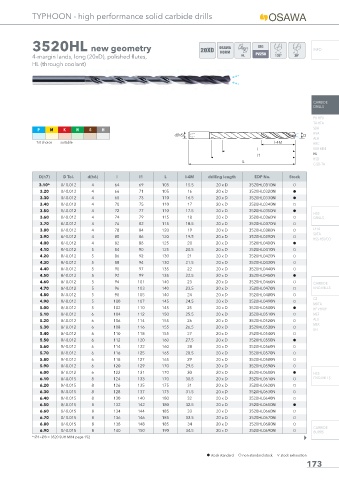

TYPHOON - high performance solid carbide drills

3520HL new geometry 20XD OSAWA INFO
NORM
4-margin lands, long (20xD), polished flutes, 135°
HL (through coolant)

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
H H H I I
ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
D(h7) D Tol. d(h6) l l1 L l-4M drilling length EDP No. Stock
3.10* 0/-0.012 4 64 69 105 15.5 20 x D 3520HL0310N f
3.20 0/-0.012 4 66 71 105 16 20 x D 3520HL0320N h
3.30 0/-0.012 4 68 73 110 16.5 20 x D 3520HL0330N h
3.40 0/-0.012 4 70 75 110 17 20 x D 3520HL0340N f
3.50 0/-0.012 4 72 77 110 17.5 20 x D 3520HL0350N h
HSS
3.60 0/-0.012 4 74 79 115 18 20 x D 3520HL0360N f DRILLS
3.70 0/-0.012 4 76 82 115 18.5 20 x D 3520HL0370N f
3.80 0/-0.012 4 78 84 120 19 20 x D 3520HL0380N f LFTA
SUTA
3.90 0/-0.012 4 80 86 120 19.5 20 x D 3520HL0390N f
HSS-HSS/CO
4.00 0/-0.012 4 82 88 125 20 20 x D 3520HL0400N h
4.10 0/-0.012 5 84 90 125 20.5 20 x D 3520HL0410N f
4.20 0/-0.012 5 86 92 130 21 20 x D 3520HL0420N f
4.30 0/-0.012 5 88 94 130 21.5 20 x D 3520HL0430N f
4.40 0/-0.012 5 90 97 135 22 20 x D 3520HL0440N f
4.50 0/-0.012 5 92 99 135 22.5 20 x D 3520HL0450N h
4.60 0/-0.012 5 94 101 140 23 20 x D 3520HL0460N f CARBIDE
4.70 0/-0.012 5 96 103 140 23.5 20 x D 3520HL0470N f END-MILLS
4.80 0/-0.012 5 98 105 140 24 20 x D 3520HL0480N f
G2
4.90 0/-0.012 5 100 107 145 24.5 20 x D 3520HL0490N f
MDTA
5.00 0/-0.012 5 102 110 145 25 20 x D 3520HL0500N h HF VH/UP
5.10 0/-0.012 6 104 112 150 25.5 20 x D 3520HL0510N f MEF
5.20 0/-0.012 6 106 114 155 26 20 x D 3520HL0520N f ALU
MEX
5.30 0/-0.012 6 108 116 155 26.5 20 x D 3520HL0530N f
UH
5.40 0/-0.012 6 110 118 155 27 20 x D 3520HL0540N f
5.50 0/-0.012 6 112 120 160 27.5 20 x D 3520HL0550N h
5.60 0/-0.012 6 114 122 160 28 20 x D 3520HL0560N f
5.70 0/-0.012 6 116 125 165 28.5 20 x D 3520HL0570N f
5.80 0/-0.012 6 118 127 165 29 20 x D 3520HL0580N f
5.90 0/-0.012 6 120 129 170 29.5 20 x D 3520HL0590N f
6.00 0/-0.012 6 122 131 170 30 20 x D 3520HL0600N h HSS
6.10 0/-0.015 8 124 133 170 30.5 20 x D 3520HL0610N f END-MILLS
6.20 0/-0.015 8 126 135 175 31 20 x D 3520HL0620N f
6.30 0/-0.015 8 128 137 175 31.5 20 x D 3520HL0630N f
6.40 0/-0.015 8 130 140 180 32 20 x D 3520HL0640N f
6.50 0/-0.015 8 132 142 180 32.5 20 x D 3520HL0650N h
6.60 0/-0.015 8 134 144 185 33 20 x D 3520HL0660N f
6.70 0/-0.015 8 136 146 185 33.5 20 x D 3520HL0670N f
6.80 0/-0.015 8 138 148 185 34 20 x D 3520HL0680N f
CARBIDE
6.90 0/-0.015 8 140 150 190 34.5 20 x D 3520HL0690N f BURRS
* Ø1÷Ø3 = 3520 SUH MINI page 152

h stock standard f non-standard stock m stock exhaustion
