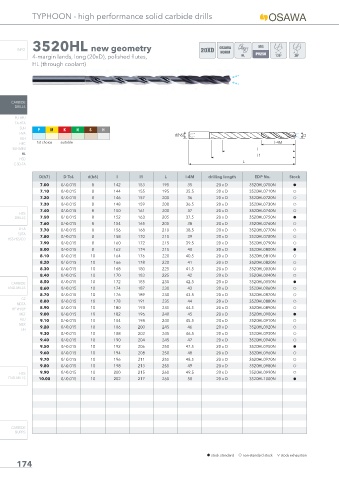

TYPHOON - high performance solid carbide drills

INFO 3520HL new geometry 20XD OSAWA
NORM
4-margin lands, long (20xD), polished flutes, 135°
HL (through coolant)

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
ALH H H H I I
HRC H 1st choice I suitable
SUH MINI
HL
HSD
C-SD-TA
D(h7) D Tol. d(h6) l l1 L l-4M drilling length EDP No. Stock
7.00 0/-0.015 8 142 153 195 35 20 x D 3520HL0700N h
7.10 0/-0.015 8 144 155 195 35.5 20 x D 3520HL0710N f
7.20 0/-0.015 8 146 157 200 36 20 x D 3520HL0720N f
7.30 0/-0.015 8 148 159 200 36.5 20 x D 3520HL0730N f
7.40 0/-0.015 8 150 161 200 37 20 x D 3520HL0740N f
HSS
DRILLS 7.50 0/-0.015 8 152 163 205 37.5 20 x D 3520HL0750N h
7.60 0/-0.015 8 154 165 205 38 20 x D 3520HL0760N f
LFTA
7.70 0/-0.015 8 156 168 210 38.5 20 x D 3520HL0770N f
SUTA
7.80 0/-0.015 8 158 170 210 39 20 x D 3520HL0780N f
HSS-HSS/CO
7.90 0/-0.015 8 160 172 215 39.5 20 x D 3520HL0790N f
8.00 0/-0.015 8 162 174 215 40 20 x D 3520HL0800N h
8.10 0/-0.015 10 164 176 220 40.5 20 x D 3520HL0810N f
8.20 0/-0.015 10 166 178 220 41 20 x D 3520HL0820N f
8.30 0/-0.015 10 168 180 225 41.5 20 x D 3520HL0830N f
8.40 0/-0.015 10 170 183 225 42 20 x D 3520HL0840N f
CARBIDE 8.50 0/-0.015 10 172 185 230 42.5 20 x D 3520HL0850N h
END-MILLS 8.60 0/-0.015 10 174 187 230 43 20 x D 3520HL0860N f
8.70 0/-0.015 10 176 189 230 43.5 20 x D 3520HL0870N f
G2
MDTA 8.80 0/-0.015 10 178 191 235 44 20 x D 3520HL0880N f
HF VH/UP 8.90 0/-0.015 10 180 193 235 44.5 20 x D 3520HL0890N f
MEF 9.00 0/-0.015 10 182 196 240 45 20 x D 3520HL0900N h
ALU 9.10 0/-0.015 10 184 198 240 45.5 20 x D 3520HL0910N f
MEX
9.20 0/-0.015 10 186 200 245 46 20 x D 3520HL0920N f
UH
9.30 0/-0.015 10 188 202 245 46.5 20 x D 3520HL0930N f
9.40 0/-0.015 10 190 204 245 47 20 x D 3520HL0940N f
9.50 0/-0.015 10 192 206 250 47.5 20 x D 3520HL0950N h
9.60 0/-0.015 10 194 208 250 48 20 x D 3520HL0960N f
9.70 0/-0.015 10 196 211 255 48.5 20 x D 3520HL0970N f
9.80 0/-0.015 10 198 213 255 49 20 x D 3520HL0980N f
HSS 9.90 0/-0.015 10 200 215 260 49.5 20 x D 3520HL0990N f
END-MILLS 10.00 0/-0.015 10 202 217 260 50 20 x D 3520HL1000N h

CARBIDE
BURRS

h stock standard f non-standard stock m stock exhaustion
