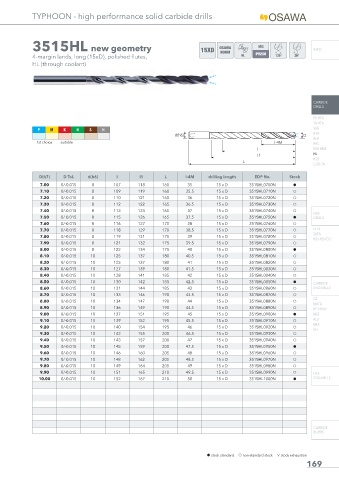

TYPHOON - high performance solid carbide drills

3515HL new geometry 15XD OSAWA INFO
NORM
4-margin lands, long (15xD), polished flutes, 135°
HL (through coolant)

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
H H H I I
ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
D(h7) D Tol. d(h6) l l1 L l-4M drilling length EDP No. Stock
7.00 0/-0.015 8 107 118 160 35 15 x D 3515HL0700N h
7.10 0/-0.015 8 109 119 160 35.5 15 x D 3515HL0710N f
7.20 0/-0.015 8 110 121 160 36 15 x D 3515HL0720N f
7.30 0/-0.015 8 112 122 165 36.5 15 x D 3515HL0730N f
7.40 0/-0.015 8 113 124 165 37 15 x D 3515HL0740N f
HSS
7.50 0/-0.015 8 115 126 165 37.5 15 x D 3515HL0750N h DRILLS
7.60 0/-0.015 8 116 127 170 38 15 x D 3515HL0760N f
7.70 0/-0.015 8 118 129 170 38.5 15 x D 3515HL0770N f LFTA
SUTA
7.80 0/-0.015 8 119 131 170 39 15 x D 3515HL0780N f
HSS-HSS/CO
7.90 0/-0.015 8 121 132 175 39.5 15 x D 3515HL0790N f
8.00 0/-0.015 8 122 134 175 40 15 x D 3515HL0800N h
8.10 0/-0.015 10 125 137 180 40.5 15 x D 3515HL0810N f
8.20 0/-0.015 10 125 137 180 41 15 x D 3515HL0820N f
8.30 0/-0.015 10 127 139 180 41.5 15 x D 3515HL0830N f
8.40 0/-0.015 10 128 141 185 42 15 x D 3515HL0840N f
8.50 0/-0.015 10 130 142 185 42.5 15 x D 3515HL0850N h CARBIDE
8.60 0/-0.015 10 131 144 185 43 15 x D 3515HL0860N f END-MILLS
8.70 0/-0.015 10 133 146 190 43.5 15 x D 3515HL0870N f
G2
8.80 0/-0.015 10 134 147 190 44 15 x D 3515HL0880N f
MDTA
8.90 0/-0.015 10 136 149 190 44.5 15 x D 3515HL0890N f HF VH/UP
9.00 0/-0.015 10 137 151 195 45 15 x D 3515HL0900N h MEF
9.10 0/-0.015 10 139 152 195 45.5 15 x D 3515HL0910N f ALU
MEX
9.20 0/-0.015 10 140 154 195 46 15 x D 3515HL0920N f
UH
9.30 0/-0.015 10 142 155 200 46.5 15 x D 3515HL0930N f
9.40 0/-0.015 10 143 157 200 47 15 x D 3515HL0940N f
9.50 0/-0.015 10 145 159 200 47.5 15 x D 3515HL0950N h
9.60 0/-0.015 10 146 160 205 48 15 x D 3515HL0960N f
9.70 0/-0.015 10 148 162 205 48.5 15 x D 3515HL0970N f
9.80 0/-0.015 10 149 164 205 49 15 x D 3515HL0980N f
9.90 0/-0.015 10 151 165 210 49.5 15 x D 3515HL0990N f HSS
10.00 0/-0.015 10 152 167 210 50 15 x D 3515HL1000N h END-MILLS

CARBIDE
BURRS

h stock standard f non-standard stock m stock exhaustion
