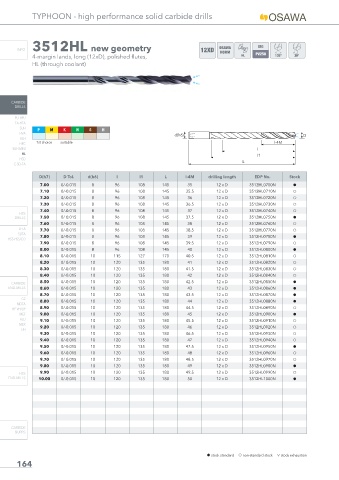

TYPHOON - high performance solid carbide drills

INFO 3512HL new geometry 12XD OSAWA
NORM
4-margin lands, long (12xD), polished flutes, 135°
HL (through coolant)

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
ALH H H H I I
HRC H 1st choice I suitable
SUH MINI
HL
HSD
C-SD-TA
D(h7) D Tol. d(h6) l l1 L l-4M drilling length EDP No. Stock
7.00 0/-0.015 8 96 108 145 35 12 x D 3512HL0700N h
7.10 0/-0.015 8 96 108 145 35.5 12 x D 3512HL0710N f
7.20 0/-0.015 8 96 108 145 36 12 x D 3512HL0720N f
7.30 0/-0.015 8 96 108 145 36.5 12 x D 3512HL0730N f
7.40 0/-0.015 8 96 108 145 37 12 x D 3512HL0740N f
