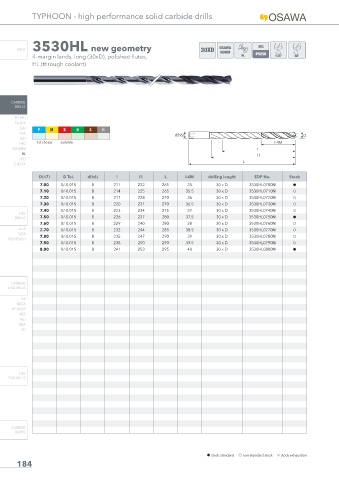

TYPHOON - high performance solid carbide drills

INFO 3530HL new geometry 30XD OSAWA
NORM
4-margin lands, long (30xD), polished flutes, 135°
HL (through coolant)

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
ALH H H H I I
HRC H 1st choice I suitable
SUH MINI
HL
HSD
C-SD-TA
D(h7) D Tol. d(h6) l l1 L l-4M drilling length EDP No. Stock
7.00 0/-0.015 8 211 222 265 35 30 x D 3530HL0700N h
7.10 0/-0.015 8 214 225 265 35.5 30 x D 3530HL0710N f
7.20 0/-0.015 8 217 228 270 36 30 x D 3530HL0720N f
7.30 0/-0.015 8 220 231 270 36.5 30 x D 3530HL0730N f
7.40 0/-0.015 8 223 234 275 37 30 x D 3530HL0740N f
HSS
DRILLS 7.50 0/-0.015 8 226 237 280 37.5 30 x D 3530HL0750N h
7.60 0/-0.015 8 229 240 280 38 30 x D 3530HL0760N f
LFTA 7.70 0/-0.015 8 232 244 285 38.5 30 x D 3530HL0770N f
SUTA
7.80 0/-0.015 8 235 247 290 39 30 x D 3530HL0780N f
HSS-HSS/CO
7.90 0/-0.015 8 238 250 290 39.5 30 x D 3530HL0790N f
8.00 0/-0.015 8 241 253 295 40 30 x D 3530HL0800N h

CARBIDE
END-MILLS
G2
MDTA
HF VH/UP
MEF
ALU
MEX
UH

HSS
END-MILLS

CARBIDE
BURRS

h stock standard f non-standard stock m stock exhaustion
