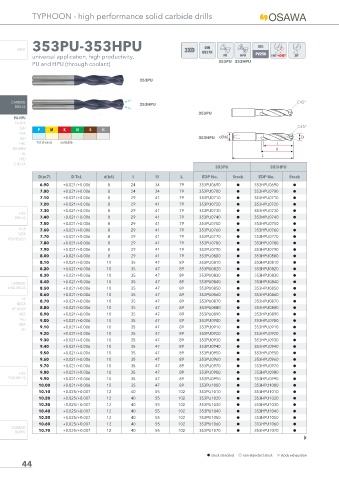

TYPHOON - high performance solid carbide drills

INFO 353PU-353HPU 3XD DIN

universal application, high productivity, 6537K 140°+C45°
353PU 353HPU
PU and HPU (through coolant)

353PU

CARBIDE 353HPU C45°
DRILLS
353PU
PU-HPU
TA-HTA
C45°
SUH
P M K N S H
HVA
ALH H H H I H 353HPU
HRC H 1st choice I suitable
SUH MINI
HL
HSD
C-SD-TA
353PU 353HPU
D(m7) D Tol. d(h6) l l1 L EDP No. Stock EDP No. Stock
6.90 +0.021/+0.006 8 24 34 79 353PU0690 h 353HPU0690 h
7.00 +0.021/+0.006 8 24 34 79 353PU0700 h 353HPU0700 h
7.10 +0.021/+0.006 8 29 41 79 353PU0710 h 353HPU0710 h
7.20 +0.021/+0.006 8 29 41 79 353PU0720 h 353HPU0720 h
7.30 +0.021/+0.006 8 29 41 79 353PU0730 h 353HPU0730 h
HSS
DRILLS 7.40 +0.021/+0.006 8 29 41 79 353PU0740 h 353HPU0740 h
7.50 +0.021/+0.006 8 29 41 79 353PU0750 h 353HPU0750 h
LFTA
7.60 +0.021/+0.006 8 29 41 79 353PU0760 h 353HPU0760 h
SUTA
7.70 +0.021/+0.006 8 29 41 79 353PU0770 h 353HPU0770 h
HSS-HSS/CO
7.80 +0.021/+0.006 8 29 41 79 353PU0780 h 353HPU0780 h
7.90 +0.021/+0.006 8 29 41 79 353PU0790 h 353HPU0790 h
8.00 +0.021/+0.006 8 29 41 79 353PU0800 h 353HPU0800 h
8.10 +0.021/+0.006 10 35 47 89 353PU0810 h 353HPU0810 h
8.20 +0.021/+0.006 10 35 47 89 353PU0820 h 353HPU0820 h
8.30 +0.021/+0.006 10 35 47 89 353PU0830 h 353HPU0830 h
CARBIDE 8.40 +0.021/+0.006 10 35 47 89 353PU0840 h 353HPU0840 h
END-MILLS 8.50 +0.021/+0.006 10 35 47 89 353PU0850 h 353HPU0850 h
8.60 +0.021/+0.006 10 35 47 89 353PU0860 h 353HPU0860 h
G2
MDTA 8.70 +0.021/+0.006 10 35 47 89 353PU0870 h 353HPU0870 h
HF VH/UP 8.80 +0.021/+0.006 10 35 47 89 353PU0880 h 353HPU0880 h
MEF 8.90 +0.021/+0.006 10 35 47 89 353PU0890 h 353HPU0890 h
ALU 9.00 +0.021/+0.006 10 35 47 89 353PU0900 h 353HPU0900 h
MEX
9.10 +0.021/+0.006 10 35 47 89 353PU0910 h 353HPU0910 h
UH
9.20 +0.021/+0.006 10 35 47 89 353PU0920 h 353HPU0920 h
9.30 +0.021/+0.006 10 35 47 89 353PU0930 h 353HPU0930 h
9.40 +0.021/+0.006 10 35 47 89 353PU0940 h 353HPU0940 h
9.50 +0.021/+0.006 10 35 47 89 353PU0950 h 353HPU0950 h
9.60 +0.021/+0.006 10 35 47 89 353PU0960 h 353HPU0960 h
9.70 +0.021/+0.006 10 35 47 89 353PU0970 h 353HPU0970 h
HSS 9.80 +0.021/+0.006 10 35 47 89 353PU0980 h 353HPU0980 h
END-MILLS 9.90 +0.021/+0.006 10 35 47 89 353PU0990 h 353HPU0990 h
10.00 +0.021/+0.006 10 35 47 89 353PU1000 h 353HPU1000 h
10.10 +0.025/+0.007 12 40 55 102 353PU1010 h 353HPU1010 h
10.20 +0.025/+0.007 12 40 55 102 353PU1020 h 353HPU1020 h
10.30 +0.025/+0.007 12 40 55 102 353PU1030 h 353HPU1030 h
10.40 +0.025/+0.007 12 40 55 102 353PU1040 h 353HPU1040 h
10.50 +0.025/+0.007 12 40 55 102 353PU1050 h 353HPU1050 h
10.60 +0.025/+0.007 12 40 55 102 353PU1060 h 353HPU1060 h
CARBIDE
BURRS 10.70 +0.025/+0.007 12 40 55 102 353PU1070 h 353HPU1070 h

h stock standard f non-standard stock m stock exhaustion
