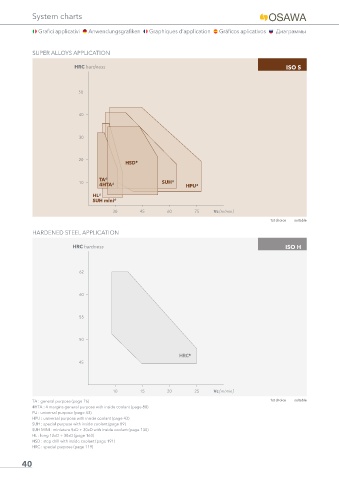

System charts
Grafici applicativi Anwendungsgrafiken Graphiques d’application Gráficos aplicativos Диаграммы
SUPER ALLOYS APPLICATION
HRC hardness ISO S
50
40
30
20
HSD +
TA ,
10 , SUH ,
4HTA HPU +
HL ,
SUH mini ,
30 45 60 75 Vc [m/min]
H 1st choice I suitable
HARDENED STEEL APPLICATION
HRC hardness ISO H
62
60
55
50
HRC +
45
10 15 20 25 Vc [m/min]
TA : general purpose (page 76) H 1st choice I suitable
4HTA : 4 margins general purpose with inside coolant (page 80)
PU : universal purpose (page 43)
HPU : universal purpose with inside coolant (page 43)
SUH : special purpose with inside coolant (page 89)
SUH MINI : miniature 5xD ÷ 30xD with inside coolant (page 130)
HL : long 12xD ÷ 30xD (page 163)
HSD : step drill with inside coolant (page 191)
HRC : special purpose (page 119)
