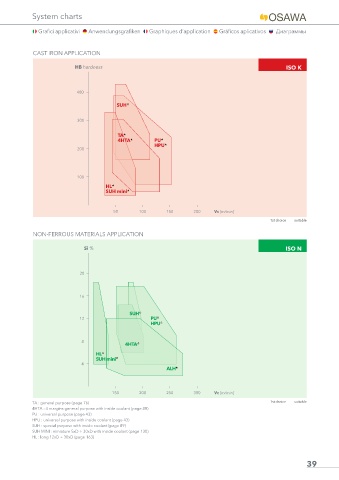

System charts
Grafici applicativi Anwendungsgrafiken Graphiques d’application Gráficos aplicativos Диаграммы
CAST IRON APPLICATION
HB hardness ISO K
400
SUH ,
300
TA +
4HTA + PU +
HPU +
200
100
HL +
SUH mini +
50 100 150 200 Vc [m/min]
H 1st choice I suitable
NON-FERROUS MATERIALS APPLICATION
Si % ISO N
20
16
SUH ,
12 PU ,
HPU ,
8
4HTA ,
HL ,
SUH mini ,
4
ALH +
150 200 250 300 Vc [m/min]
TA : general purpose (page 76) H 1st choice I suitable
4HTA : 4 margins general purpose with inside coolant (page 80)
PU : universal purpose (page 43)
HPU : universal purpose with inside coolant (page 43)
SUH : special purpose with inside coolant (page 89)
SUH MINI : miniature 5xD ÷ 30xD with inside coolant (page 130)
HL : long 12xD ÷ 30xD (page 163)
