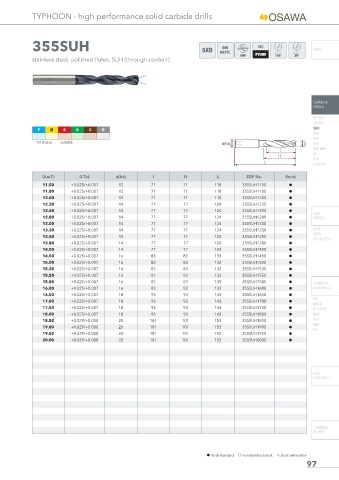

TYPHOON - high performance solid carbide drills

355SUH 5XD 6537L INFO
DIN
stainless steel, polished flutes, SUH (through coolant)

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
I H I I I
ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
11.50 +0.025/+0.007 12 71 71 118 355SUH1150 h
11.80 +0.025/+0.007 12 71 71 118 355SUH1180 h
12.00 +0.025/+0.007 12 71 71 118 355SUH1200 h
12.20 +0.025/+0.007 14 77 77 124 355SUH1220 h
12.50 +0.025/+0.007 14 77 77 124 355SUH1250 h
HSS
12.80 +0.025/+0.007 14 77 77 124 355SUH1280 h DRILLS
13.00 +0.025/+0.007 14 77 77 124 355SUH1300 h
13.30 +0.025/+0.007 14 77 77 124 355SUH1330 h LFTA
SUTA
13.50 +0.025/+0.007 14 77 77 124 355SUH1350 h
HSS-HSS/CO
13.80 +0.025/+0.007 14 77 77 124 355SUH1380 h
14.00 +0.025/+0.007 14 77 77 124 355SUH1400 h
14.50 +0.025/+0.007 16 83 83 133 355SUH1450 h
15.00 +0.025/+0.007 16 83 83 133 355SUH1500 h
15.30 +0.025/+0.007 16 83 83 133 355SUH1530 h
15.50 +0.025/+0.007 16 83 83 133 355SUH1550 h
15.80 +0.025/+0.007 16 83 83 133 355SUH1580 h CARBIDE
16.00 +0.025/+0.007 16 83 83 133 355SUH1600 h END-MILLS
16.50 +0.025/+0.007 18 93 93 143 355SUH1650 h
G2
17.00 +0.025/+0.007 18 93 93 143 355SUH1700 h
MDTA
17.50 +0.025/+0.007 18 93 93 143 355SUH1750 h HF VH/UP
18.00 +0.025/+0.007 18 93 93 143 355SUH1800 h MEF
18.50 +0.029/+0.008 20 101 101 153 355SUH1850 h ALU
MEX
19.00 +0.029/+0.008 20 101 101 153 355SUH1900 h
UH
19.50 +0.029/+0.008 20 101 101 153 355SUH1950 h
20.00 +0.029/+0.008 20 101 101 153 355SUH2000 h

HSS
END-MILLS

CARBIDE
BURRS

h stock standard f non-standard stock m stock exhaustion
