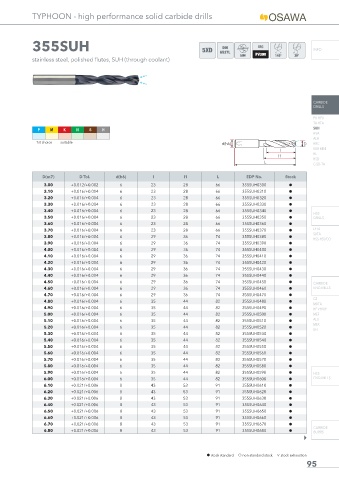

TYPHOON - high performance solid carbide drills

355SUH 5XD 6537L INFO
DIN
stainless steel, polished flutes, SUH (through coolant)

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
I H I I I
ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
3.00 +0.012/+0.002 6 23 28 66 355SUH0300 h
3.10 +0.016/+0.004 6 23 28 66 355SUH0310 h
3.20 +0.016/+0.004 6 23 28 66 355SUH0320 h
3.30 +0.016/+0.004 6 23 28 66 355SUH0330 h
3.40 +0.016/+0.004 6 23 28 66 355SUH0340 h
HSS
3.50 +0.016/+0.004 6 23 28 66 355SUH0350 h DRILLS
3.60 +0.016/+0.004 6 23 28 66 355SUH0360 h
3.70 +0.016/+0.004 6 23 28 66 355SUH0370 h LFTA
SUTA
3.80 +0.016/+0.004 6 29 36 74 355SUH0380 h
HSS-HSS/CO
3.90 +0.016/+0.004 6 29 36 74 355SUH0390 h
4.00 +0.016/+0.004 6 29 36 74 355SUH0400 h
4.10 +0.016/+0.004 6 29 36 74 355SUH0410 h
4.20 +0.016/+0.004 6 29 36 74 355SUH0420 h
4.30 +0.016/+0.004 6 29 36 74 355SUH0430 h
4.40 +0.016/+0.004 6 29 36 74 355SUH0440 h
4.50 +0.016/+0.004 6 29 36 74 355SUH0450 h CARBIDE
4.60 +0.016/+0.004 6 29 36 74 355SUH0460 h END-MILLS
4.70 +0.016/+0.004 6 29 36 74 355SUH0470 h
G2
4.80 +0.016/+0.004 6 35 44 82 355SUH0480 h
MDTA
4.90 +0.016/+0.004 6 35 44 82 355SUH0490 h HF VH/UP
5.00 +0.016/+0.004 6 35 44 82 355SUH0500 h MEF
5.10 +0.016/+0.004 6 35 44 82 355SUH0510 h ALU
MEX
5.20 +0.016/+0.004 6 35 44 82 355SUH0520 h
UH
5.30 +0.016/+0.004 6 35 44 82 355SUH0530 h
5.40 +0.016/+0.004 6 35 44 82 355SUH0540 h
5.50 +0.016/+0.004 6 35 44 82 355SUH0550 h
5.60 +0.016/+0.004 6 35 44 82 355SUH0560 h
5.70 +0.016/+0.004 6 35 44 82 355SUH0570 h
5.80 +0.016/+0.004 6 35 44 82 355SUH0580 h
5.90 +0.016/+0.004 6 35 44 82 355SUH0590 h HSS
6.00 +0.016/+0.004 6 35 44 82 355SUH0600 h END-MILLS
6.10 +0.021/+0.006 8 43 53 91 355SUH0610 h
6.20 +0.021/+0.006 8 43 53 91 355SUH0620 h
6.30 +0.021/+0.006 8 43 53 91 355SUH0630 h
6.40 +0.021/+0.006 8 43 53 91 355SUH0640 h
6.50 +0.021/+0.006 8 43 53 91 355SUH0650 h
6.60 +0.021/+0.006 8 43 53 91 355SUH0660 h
6.70 +0.021/+0.006 8 43 53 91 355SUH0670 h
CARBIDE
6.80 +0.021/+0.006 8 43 53 91 355SUH0680 h BURRS

h stock standard f non-standard stock m stock exhaustion
