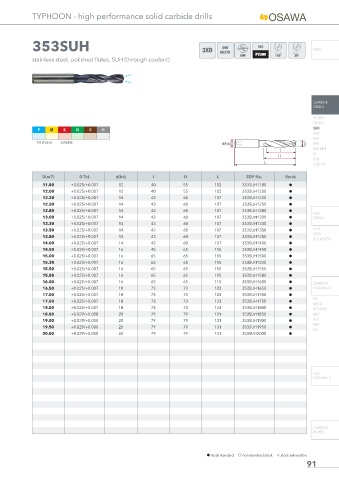

TYPHOON - high performance solid carbide drills

353SUH 3XD 6537K INFO
DIN
stainless steel, polished flutes, SUH (through coolant)

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
I H I I I
ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
11.80 +0.025/+0.007 12 40 55 102 353SUH1180 h
12.00 +0.025/+0.007 12 40 55 102 353SUH1200 h
12.20 +0.025/+0.007 14 43 60 107 353SUH1220 h
12.50 +0.025/+0.007 14 43 60 107 353SUH1250 h
12.80 +0.025/+0.007 14 43 60 107 353SUH1280 h
HSS
13.00 +0.025/+0.007 14 43 60 107 353SUH1300 h DRILLS
13.30 +0.025/+0.007 14 43 60 107 353SUH1330 h
13.50 +0.025/+0.007 14 43 60 107 353SUH1350 h LFTA
SUTA
13.80 +0.025/+0.007 14 43 60 107 353SUH1380 h
HSS-HSS/CO
14.00 +0.025/+0.007 14 43 60 107 353SUH1400 h
14.50 +0.025/+0.007 16 45 65 115 353SUH1450 h
15.00 +0.025/+0.007 16 65 65 115 353SUH1500 h
15.30 +0.025/+0.007 16 65 65 115 353SUH1530 h
15.50 +0.025/+0.007 16 65 65 115 353SUH1550 h
15.80 +0.025/+0.007 16 65 65 115 353SUH1580 h
16.00 +0.025/+0.007 16 65 65 115 353SUH1600 h CARBIDE
16.50 +0.025/+0.007 18 73 73 123 353SUH1650 h END-MILLS
17.00 +0.025/+0.007 18 73 73 123 353SUH1700 h
G2
17.50 +0.025/+0.007 18 73 73 123 353SUH1750 h
MDTA
18.00 +0.025/+0.007 18 73 73 123 353SUH1800 h HF VH/UP
18.50 +0.029/+0.008 20 79 79 131 353SUH1850 h MEF
19.00 +0.029/+0.008 20 79 79 131 353SUH1900 h ALU
MEX
19.50 +0.029/+0.008 20 79 79 131 353SUH1950 h
UH
20.00 +0.029/+0.008 20 79 79 131 353SUH2000 h

HSS
END-MILLS

CARBIDE
BURRS

h stock standard f non-standard stock m stock exhaustion
91
