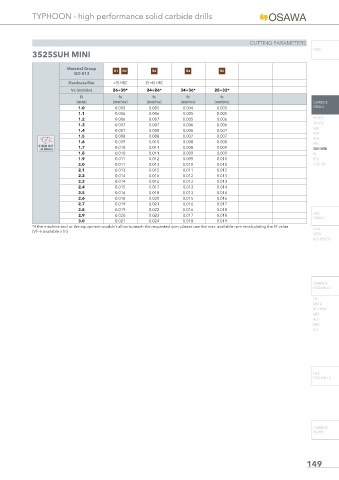

TYPHOON - high performance solid carbide drills

CUTTING PARAMETERS
INFO
3525SUH MINI

Material Group S1 S2 S3 S4 S5
ISO 513
Hardness/Rm <35 HRC 35÷45 HRC
Vc (m/min) 26÷30* 24÷26* 34÷36* 28÷32*
D fn fn fn fn
(mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) CARBIDE
1.0 0.005 0.005 0.004 0.005 DRILLS
1.1 0.006 0.006 0.005 0.005
1.2 0.006 0.007 0.005 0.006 PU-HPU
TA-HTA
1.3 0.007 0.007 0.006 0.006
SUH
1.4 0.007 0.008 0.006 0.007
HVA
1.5 0.008 0.008 0.007 0.007
ALH
1.6 0.009 0.010 0.008 0.008 HRC
Ø RUN OUT 1.7 0.010 0.011 0.008 0.009
<0.02mm SUH MINI
1.8 0.010 0.011 0.009 0.009 HL
1.9 0.011 0.012 0.009 0.010 HSD
2.0 0.011 0.013 0.010 0.010 C-SD-TA
2.1 0.013 0.015 0.011 0.012
2.2 0.014 0.016 0.012 0.013
2.3 0.014 0.016 0.012 0.013
2.4 0.015 0.017 0.013 0.014
2.5 0.016 0.018 0.013 0.014
2.6 0.018 0.020 0.015 0.016
2.7 0.019 0.021 0.016 0.017
2.8 0.019 0.022 0.016 0.018
HSS
2.9 0.020 0.023 0.017 0.018
DRILLS
3.0 0.021 0.024 0.018 0.019
*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value LFTA
(Vf=n available x fn)
