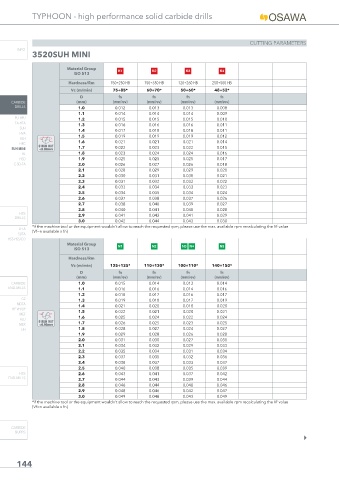

TYPHOON - high performance solid carbide drills

CUTTING PARAMETERS
INFO
3520SUH MINI

Material Group K1 K2 K3 K4
ISO 513
Hardness/Rm 150÷250 HB 150÷350 HB 120÷260 HB 250÷500 HB
Vc (m/min) 75÷85* 60÷70* 50÷60* 48÷52*
D fn fn fn fn
CARBIDE (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev)
DRILLS 1.0 0.012 0.013 0.013 0.008
1.1 0.014 0.014 0.014 0.009
PU-HPU 1.2 0.015 0.015 0.015 0.010
TA-HTA
1.3 0.016 0.016 0.016 0.011
SUH
1.4 0.017 0.018 0.018 0.011
HVA
1.5 0.019 0.019 0.019 0.012
ALH
1.6 0.021 0.021 0.021 0.014
HRC
Ø RUN OUT
SUH MINI <0.02mm 1.7 0.022 0.023 0.022 0.015
HL 1.8 0.023 0.024 0.024 0.016
HSD 1.9 0.025 0.025 0.025 0.017
C-SD-TA 2.0 0.026 0.027 0.026 0.018
2.1 0.028 0.029 0.029 0.020
2.2 0.030 0.031 0.030 0.021
2.3 0.031 0.032 0.032 0.022
2.4 0.033 0.034 0.033 0.023
2.5 0.034 0.035 0.034 0.024
2.6 0.037 0.038 0.037 0.026
2.7 0.038 0.040 0.039 0.027
2.8 0.040 0.041 0.040 0.028
HSS 2.9 0.041 0.043 0.041 0.029
DRILLS
3.0 0.042 0.044 0.043 0.030
*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value
LFTA
(Vf=n available x fn)
SUTA
HSS-HSS/CO
Material Group N1 N2 N3 N4 N5
ISO 513
Hardness/Rm
Vc (m/min) 125÷135* 110÷120* 100÷110* 140÷150*
D fn fn fn fn
(mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev)
CARBIDE 1.0 0.015 0.014 0.013 0.014
END-MILLS 1.1 0.016 0.016 0.014 0.016
1.2 0.018 0.017 0.016 0.017
G2
1.3 0.019 0.018 0.017 0.019
MDTA
1.4 0.021 0.020 0.018 0.020
HF VH/UP
1.5 0.022 0.021 0.020 0.021
MEF
1.6 0.025 0.024 0.022 0.024
ALU
Ø RUN OUT
MEX <0.02mm 1.7 0.026 0.025 0.023 0.025
UH 1.8 0.028 0.027 0.024 0.027
1.9 0.029 0.028 0.026 0.028
2.0 0.031 0.030 0.027 0.030
2.1 0.034 0.032 0.029 0.033
2.2 0.035 0.034 0.031 0.034
2.3 0.037 0.035 0.032 0.036
2.4 0.038 0.037 0.033 0.037
2.5 0.040 0.038 0.035 0.039
HSS 2.6 0.043 0.041 0.037 0.042
END-MILLS
2.7 0.044 0.043 0.039 0.044
2.8 0.046 0.044 0.040 0.046
2.9 0.048 0.046 0.042 0.047
3.0 0.049 0.048 0.043 0.049
*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value
(Vf=n available x fn)
CARBIDE
BURRS
