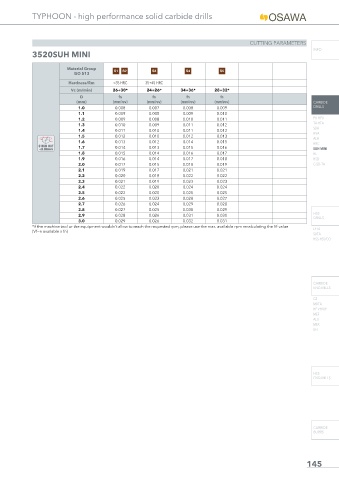

TYPHOON - high performance solid carbide drills

CUTTING PARAMETERS
INFO
3520SUH MINI

Material Group S1 S2 S3 S4 S5
ISO 513
Hardness/Rm <35 HRC 35÷45 HRC
Vc (m/min) 26÷30* 24÷26* 34÷36* 28÷32*
D fn fn fn fn
(mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) CARBIDE
1.0 0.008 0.007 0.008 0.009 DRILLS
1.1 0.009 0.008 0.009 0.010
1.2 0.009 0.008 0.010 0.011 PU-HPU
TA-HTA
1.3 0.010 0.009 0.011 0.012
SUH
1.4 0.011 0.010 0.011 0.012
HVA
1.5 0.012 0.010 0.012 0.013
ALH
1.6 0.013 0.012 0.014 0.015 HRC
Ø RUN OUT 1.7 0.014 0.013 0.015 0.016
<0.02mm SUH MINI
1.8 0.015 0.014 0.016 0.017 HL
1.9 0.016 0.014 0.017 0.018 HSD
2.0 0.017 0.015 0.018 0.019 C-SD-TA
2.1 0.019 0.017 0.021 0.021
2.2 0.020 0.018 0.022 0.022
2.3 0.021 0.019 0.023 0.023
2.4 0.022 0.020 0.024 0.024
2.5 0.022 0.020 0.025 0.025
2.6 0.025 0.023 0.028 0.027
2.7 0.026 0.024 0.029 0.028
2.8 0.027 0.025 0.030 0.029
HSS
2.9 0.028 0.026 0.031 0.030
DRILLS
3.0 0.029 0.026 0.032 0.031
*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value LFTA
