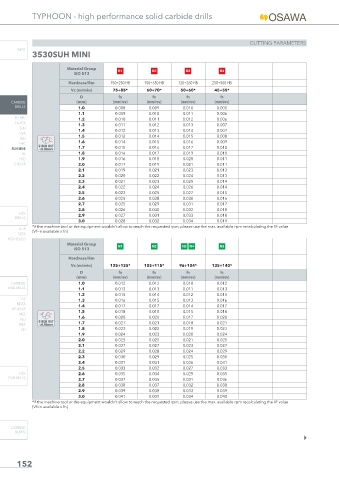

TYPHOON - high performance solid carbide drills

CUTTING PARAMETERS
INFO
3530SUH MINI

Material Group K1 K2 K3 K4
ISO 513
Hardness/Rm 150÷250 HB 150÷350 HB 120÷260 HB 250÷500 HB
Vc (m/min) 75÷85* 60÷70* 50÷60* 45÷55*
D fn fn fn fn
CARBIDE (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev)
DRILLS 1.0 0.008 0.009 0.010 0.005
1.1 0.009 0.010 0.011 0.006
PU-HPU 1.2 0.010 0.011 0.012 0.006
TA-HTA
1.3 0.011 0.012 0.013 0.007
SUH
1.4 0.012 0.013 0.014 0.007
HVA
1.5 0.012 0.014 0.015 0.008
ALH
1.6 0.014 0.015 0.016 0.009
HRC
Ø RUN OUT
SUH MINI <0.02mm 1.7 0.015 0.016 0.017 0.010
HL 1.8 0.016 0.017 0.019 0.010
HSD 1.9 0.016 0.018 0.020 0.011
C-SD-TA 2.0 0.017 0.019 0.021 0.011
2.1 0.019 0.021 0.023 0.013
2.2 0.020 0.022 0.024 0.013
2.3 0.021 0.023 0.025 0.014
2.4 0.022 0.024 0.026 0.014
2.5 0.023 0.025 0.027 0.015
2.6 0.025 0.028 0.030 0.016
2.7 0.025 0.029 0.031 0.017
2.8 0.026 0.030 0.032 0.018
HSS 2.9 0.027 0.031 0.033 0.018
DRILLS
3.0 0.028 0.032 0.034 0.019
*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value
LFTA
(Vf=n available x fn)
SUTA
HSS-HSS/CO
Material Group N1 N2 N3 N4 N5
ISO 513
Hardness/Rm
Vc (m/min) 125÷135* 105÷115* 96÷104* 135÷140*
D fn fn fn fn
(mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev)
CARBIDE 1.0 0.012 0.012 0.010 0.012
END-MILLS 1.1 0.013 0.013 0.011 0.013
1.2 0.015 0.014 0.012 0.015
G2
1.3 0.016 0.015 0.013 0.016
MDTA
1.4 0.017 0.017 0.014 0.017
HF VH/UP
1.5 0.018 0.018 0.015 0.018
MEF
1.6 0.020 0.020 0.017 0.020
ALU
Ø RUN OUT
MEX <0.02mm 1.7 0.021 0.021 0.018 0.021
UH 1.8 0.023 0.022 0.019 0.023
1.9 0.024 0.023 0.020 0.024
2.0 0.025 0.025 0.021 0.025
2.1 0.027 0.027 0.023 0.027
2.2 0.029 0.028 0.024 0.029
2.3 0.030 0.029 0.025 0.030
2.4 0.031 0.031 0.026 0.031
2.5 0.033 0.032 0.027 0.033
HSS 2.6 0.035 0.034 0.029 0.035
END-MILLS
2.7 0.037 0.035 0.031 0.036
2.8 0.038 0.037 0.032 0.038
2.9 0.039 0.038 0.033 0.039
3.0 0.041 0.039 0.034 0.040
*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value
(Vf=n available x fn)
CARBIDE
BURRS
