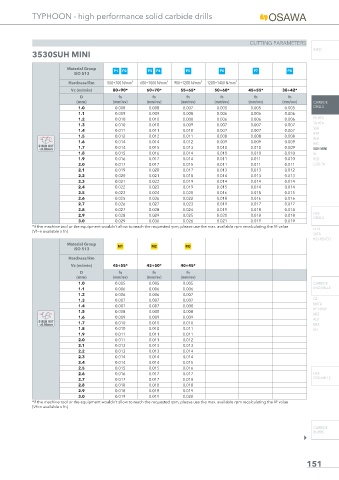

Page 119 - TyphoonOsawa

TYPHOON - high performance solid carbide drills

CUTTING PARAMETERS
INFO
3530SUH MINI

Material Group P1 P2 P3 P4 P5 P6 P7 P8
ISO 513
Hardness/Rm 500÷700 N/mm² 600÷1000 N/mm² 900÷1200 N/mm² 1200÷1400 N/mm²
Vc (m/min) 80÷90* 60÷70* 55÷65* 50÷60* 45÷55* 38÷42*
D fn fn fn fn fn fn
(mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) (mm/rev) (mm/rev) CARBIDE
1.0 0.008 0.008 0.007 0.005 0.005 0.005 DRILLS
1.1 0.009 0.009 0.008 0.006 0.006 0.006
1.2 0.010 0.010 0.008 0.006 0.006 0.006 PU-HPU
TA-HTA
1.3 0.010 0.010 0.009 0.007 0.007 0.007
SUH
1.4 0.011 0.011 0.010 0.007 0.007 0.007
HVA
1.5 0.012 0.012 0.011 0.008 0.008 0.008
ALH
1.6 0.014 0.014 0.012 0.009 0.009 0.009 HRC
Ø RUN OUT 1.7 0.014 0.015 0.013 0.010 0.010 0.009
<0.02mm SUH MINI
1.8 0.015 0.016 0.014 0.010 0.010 0.010 HL
1.9 0.016 0.017 0.014 0.011 0.011 0.010 HSD
2.0 0.017 0.017 0.015 0.011 0.011 0.011 C-SD-TA
2.1 0.019 0.020 0.017 0.013 0.013 0.012
2.2 0.020 0.021 0.018 0.014 0.013 0.013
2.3 0.021 0.022 0.019 0.014 0.014 0.014
2.4 0.022 0.023 0.019 0.015 0.014 0.014
2.5 0.023 0.024 0.020 0.016 0.015 0.015
2.6 0.025 0.026 0.022 0.018 0.016 0.016
2.7 0.026 0.027 0.023 0.019 0.017 0.017
2.8 0.027 0.028 0.024 0.019 0.018 0.018
HSS
2.9 0.028 0.029 0.025 0.020 0.018 0.018
DRILLS
3.0 0.029 0.030 0.026 0.021 0.019 0.019
*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value LFTA
(Vf=n available x fn)
SUTA
HSS-HSS/CO
Material Group M1 M2 M3
ISO 513
Hardness/Rm
Vc (m/min) 45÷55* 45÷50* 40÷45*
D fn fn fn
(mm) (mm/rev) (mm/rev) (mm/rev)
1.0 0.005 0.005 0.005 CARBIDE
1.1 0.006 0.006 0.006 END-MILLS
1.2 0.006 0.006 0.007
G2
1.3 0.007 0.007 0.007
MDTA
1.4 0.007 0.007 0.008
HF VH/UP
1.5 0.008 0.008 0.008
MEF
1.6 0.009 0.009 0.009 ALU
Ø RUN OUT 1.7 0.010 0.010 0.010
<0.02mm MEX
1.8 0.010 0.010 0.011 UH
1.9 0.011 0.011 0.011
2.0 0.011 0.011 0.012
2.1 0.013 0.013 0.013
2.2 0.013 0.013 0.014
2.3 0.014 0.014 0.014
2.4 0.014 0.014 0.015
2.5 0.015 0.015 0.016
2.6 0.016 0.017 0.017 HSS
END-MILLS
2.7 0.017 0.017 0.018
2.8 0.018 0.018 0.018
2.9 0.018 0.018 0.019
3.0 0.019 0.019 0.020
*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value
(Vf=n available x fn)

CARBIDE
BURRS
