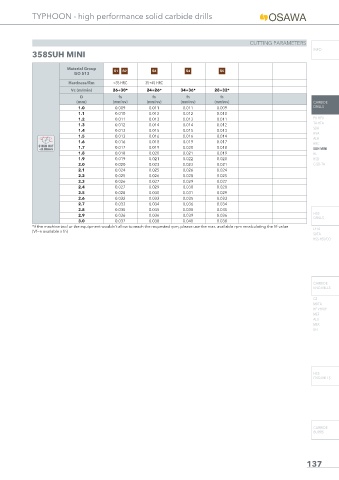

TYPHOON - high performance solid carbide drills

CUTTING PARAMETERS
INFO
358SUH MINI

Material Group S1 S2 S3 S4 S5
ISO 513
Hardness/Rm <35 HRC 35÷45 HRC
Vc (m/min) 26÷30* 24÷26* 34÷36* 28÷32*
D fn fn fn fn
(mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) CARBIDE
1.0 0.009 0.011 0.011 0.009 DRILLS
1.1 0.010 0.012 0.012 0.010
1.2 0.011 0.013 0.013 0.011 PU-HPU
TA-HTA
1.3 0.012 0.014 0.014 0.012
SUH
1.4 0.013 0.015 0.015 0.013
HVA
1.5 0.013 0.016 0.016 0.014
ALH
1.6 0.016 0.018 0.019 0.017 HRC
Ø RUN OUT 1.7 0.017 0.019 0.020 0.018
<0.02mm SUH MINI
1.8 0.018 0.020 0.021 0.019 HL
1.9 0.019 0.021 0.022 0.020 HSD
2.0 0.020 0.023 0.023 0.021 C-SD-TA
2.1 0.024 0.025 0.026 0.024
2.2 0.025 0.026 0.028 0.025
2.3 0.026 0.027 0.029 0.027
2.4 0.027 0.029 0.030 0.028
2.5 0.028 0.030 0.031 0.029
2.6 0.032 0.033 0.035 0.033
2.7 0.033 0.034 0.036 0.034
2.8 0.035 0.035 0.038 0.035
HSS
2.9 0.036 0.036 0.039 0.036
DRILLS
3.0 0.037 0.038 0.040 0.038
*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value LFTA
(Vf=n available x fn)
