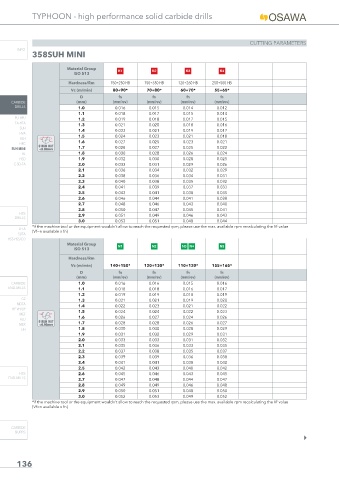

TYPHOON - high performance solid carbide drills

CUTTING PARAMETERS
INFO
358SUH MINI

Material Group K1 K2 K3 K4
ISO 513
Hardness/Rm 150÷250 HB 150÷350 HB 120÷260 HB 250÷500 HB
Vc (m/min) 80÷90* 70÷80* 60÷70* 55÷65*
D fn fn fn fn
CARBIDE (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev)
DRILLS 1.0 0.016 0.015 0.014 0.012
1.1 0.018 0.017 0.015 0.014
PU-HPU 1.2 0.019 0.018 0.017 0.015
TA-HTA
1.3 0.021 0.020 0.018 0.016
SUH
1.4 0.023 0.021 0.019 0.017
HVA
1.5 0.024 0.023 0.021 0.018
ALH
1.6 0.027 0.025 0.023 0.021
HRC
Ø RUN OUT
SUH MINI <0.02mm 1.7 0.028 0.027 0.025 0.022
HL 1.8 0.030 0.028 0.026 0.024
HSD 1.9 0.032 0.030 0.028 0.025
C-SD-TA 2.0 0.033 0.031 0.029 0.026
2.1 0.036 0.034 0.032 0.029
2.2 0.038 0.036 0.034 0.031
2.3 0.040 0.038 0.035 0.032
2.4 0.041 0.039 0.037 0.033
2.5 0.043 0.041 0.038 0.035
2.6 0.046 0.044 0.041 0.038
2.7 0.048 0.046 0.043 0.040
2.8 0.050 0.047 0.045 0.041
HSS 2.9 0.051 0.049 0.046 0.043
DRILLS
3.0 0.053 0.051 0.048 0.044
*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value
LFTA
(Vf=n available x fn)
SUTA
HSS-HSS/CO
Material Group N1 N2 N3 N4 N5
ISO 513
Hardness/Rm
Vc (m/min) 140÷150* 120÷130* 110÷120* 155÷165*
D fn fn fn fn
(mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev)
CARBIDE 1.0 0.016 0.016 0.015 0.016
END-MILLS 1.1 0.018 0.018 0.016 0.017
1.2 0.019 0.019 0.018 0.019
G2
1.3 0.021 0.021 0.019 0.020
MDTA
1.4 0.022 0.023 0.021 0.022
HF VH/UP
1.5 0.024 0.024 0.022 0.023
MEF
1.6 0.026 0.027 0.024 0.026
ALU
Ø RUN OUT
MEX <0.02mm 1.7 0.028 0.028 0.026 0.027
UH 1.8 0.030 0.030 0.028 0.029
1.9 0.031 0.032 0.029 0.031
2.0 0.033 0.033 0.031 0.032
2.1 0.035 0.036 0.033 0.035
2.2 0.037 0.038 0.035 0.037
2.3 0.039 0.039 0.036 0.038
2.4 0.041 0.041 0.038 0.040
2.5 0.042 0.043 0.040 0.042
HSS 2.6 0.045 0.046 0.043 0.045
END-MILLS
2.7 0.047 0.048 0.044 0.047
2.8 0.049 0.049 0.046 0.048
2.9 0.050 0.051 0.048 0.050
3.0 0.052 0.053 0.049 0.052
*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value
(Vf=n available x fn)
CARBIDE
BURRS

136
