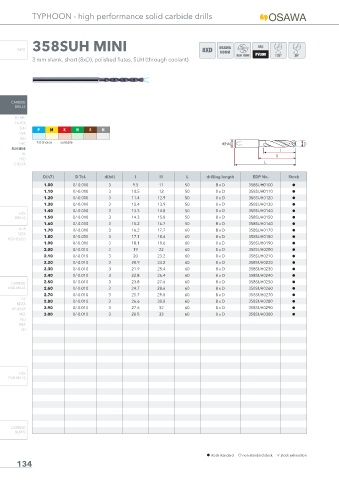

TYPHOON - high performance solid carbide drills

INFO 358SUH MINI 8XD OSAWA
NORM
135°
3 mm shank, short (8xD), polished flutes, SUH (through coolant)

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
ALH H H H I I
HRC H 1st choice I suitable
SUH MINI
HL
HSD
C-SD-TA
D(h7) D Tol. d(h6) l l1 L drilling length EDP No. Stock
1.00 0/-0.010 3 9.5 11 50 8 x D 358SUH0100 h
1.10 0/-0.010 3 10.5 12 50 8 x D 358SUH0110 h
1.20 0/-0.010 3 11.4 12.9 50 8 x D 358SUH0120 h
1.30 0/-0.010 3 12.4 13.9 50 8 x D 358SUH0130 h
1.40 0/-0.010 3 13.3 14.8 50 8 x D 358SUH0140 h
HSS
DRILLS 1.50 0/-0.010 3 14.3 15.8 50 8 x D 358SUH0150 h
1.60 0/-0.010 3 15.2 16.7 50 8 x D 358SUH0160 h
LFTA
1.70 0/-0.010 3 16.2 17.7 60 8 x D 358SUH0170 h
SUTA
1.80 0/-0.010 3 17.1 18.6 60 8 x D 358SUH0180 h
HSS-HSS/CO
1.90 0/-0.010 3 18.1 19.6 60 8 x D 358SUH0190 h
2.00 0/-0.010 3 19 22 60 8 x D 358SUH0200 h
2.10 0/-0.010 3 20 23.2 60 8 x D 358SUH0210 h
2.20 0/-0.010 3 20.9 24.2 60 8 x D 358SUH0220 h
2.30 0/-0.010 3 21.9 25.4 60 8 x D 358SUH0230 h
2.40 0/-0.010 3 22.8 26.4 60 8 x D 358SUH0240 h
CARBIDE 2.50 0/-0.010 3 23.8 27.6 60 8 x D 358SUH0250 h
END-MILLS 2.60 0/-0.010 3 24.7 28.6 60 8 x D 358SUH0260 h
2.70 0/-0.010 3 25.7 29.8 60 8 x D 358SUH0270 h
G2
MDTA 2.80 0/-0.010 3 26.6 30.8 60 8 x D 358SUH0280 h
HF VH/UP 2.90 0/-0.010 3 27.6 32 60 8 x D 358SUH0290 h
MEF 3.00 0/-0.010 3 28.5 33 60 8 x D 358SUH0300 h
ALU
MEX
UH

HSS
END-MILLS

CARBIDE
BURRS

h stock standard f non-standard stock m stock exhaustion
