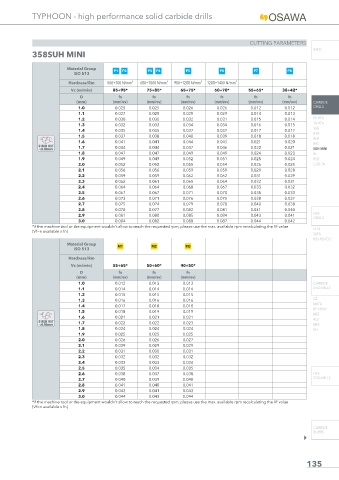

Page 103 - TyphoonOsawa

TYPHOON - high performance solid carbide drills

CUTTING PARAMETERS
INFO
358SUH MINI

Material Group P1 P2 P3 P4 P5 P6 P7 P8
ISO 513
Hardness/Rm 500÷700 N/mm² 600÷1000 N/mm² 900÷1200 N/mm² 1200÷1400 N/mm²
Vc (m/min) 85÷95* 75÷85* 65÷75* 60÷70* 55÷65* 38÷42*
D fn fn fn fn fn fn
(mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) (mm/rev) (mm/rev) CARBIDE
1.0 0.025 0.025 0.026 0.026 0.012 0.012 DRILLS
1.1 0.027 0.028 0.029 0.029 0.014 0.013
1.2 0.030 0.030 0.032 0.031 0.015 0.014 PU-HPU
TA-HTA
1.3 0.032 0.033 0.034 0.034 0.016 0.015
SUH
1.4 0.035 0.035 0.037 0.037 0.017 0.017
HVA
1.5 0.037 0.038 0.040 0.039 0.018 0.018
ALH
1.6 0.041 0.041 0.044 0.043 0.021 0.020 HRC
Ø RUN OUT 1.7 0.044 0.044 0.047 0.046 0.022 0.021
<0.02mm SUH MINI
1.8 0.047 0.047 0.049 0.049 0.024 0.023 HL
1.9 0.049 0.049 0.052 0.051 0.025 0.024 HSD
2.0 0.052 0.052 0.055 0.054 0.026 0.025 C-SD-TA
2.1 0.056 0.056 0.059 0.059 0.029 0.028
2.2 0.059 0.059 0.062 0.062 0.031 0.029
2.3 0.062 0.061 0.065 0.064 0.032 0.031
2.4 0.064 0.064 0.068 0.067 0.033 0.032
2.5 0.067 0.067 0.071 0.070 0.035 0.033
2.6 0.073 0.071 0.076 0.075 0.038 0.037
2.7 0.075 0.074 0.079 0.078 0.040 0.038
2.8 0.078 0.077 0.082 0.081 0.041 0.040
HSS
2.9 0.081 0.080 0.085 0.084 0.043 0.041
DRILLS
3.0 0.084 0.082 0.088 0.087 0.044 0.042
*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value LFTA
(Vf=n available x fn)
SUTA
HSS-HSS/CO
Material Group M1 M2 M3
ISO 513
Hardness/Rm
Vc (m/min) 55÷65* 50÷60* 40÷50*
D fn fn fn
(mm) (mm/rev) (mm/rev) (mm/rev)
1.0 0.012 0.013 0.013 CARBIDE
1.1 0.014 0.014 0.014 END-MILLS
1.2 0.015 0.015 0.015
G2
1.3 0.016 0.016 0.016
MDTA
1.4 0.017 0.018 0.018
HF VH/UP
1.5 0.018 0.019 0.019
MEF
1.6 0.021 0.021 0.021 ALU
Ø RUN OUT 1.7 0.022 0.022 0.023
<0.02mm MEX
1.8 0.024 0.024 0.024 UH
1.9 0.025 0.025 0.025
2.0 0.026 0.026 0.027
2.1 0.029 0.029 0.029
2.2 0.031 0.030 0.031
2.3 0.032 0.032 0.032
2.4 0.033 0.033 0.034
2.5 0.035 0.034 0.035
2.6 0.038 0.037 0.038 HSS
END-MILLS
2.7 0.040 0.039 0.040
2.8 0.041 0.040 0.041
2.9 0.043 0.041 0.043
3.0 0.044 0.043 0.044
*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value
(Vf=n available x fn)

CARBIDE
BURRS

135
