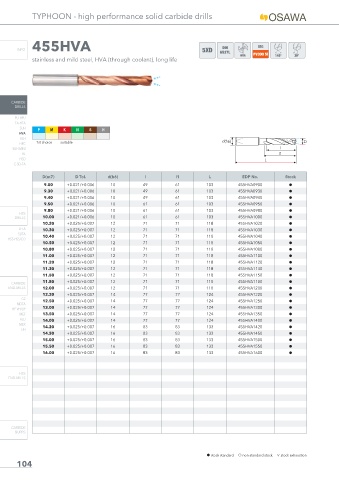

TYPHOON - high performance solid carbide drills

INFO 455HVA 5XD DIN
6537L
HVA PV300 Si
stainless and mild steel, HVA (through coolant), long life

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
ALH H H
HRC H 1st choice I suitable
SUH MINI
HL
HSD
C-SD-TA
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
9.00 +0.021/+0.006 10 49 61 103 455HVA0900 h
9.30 +0.021/+0.006 10 49 61 103 455HVA0930 h
9.40 +0.021/+0.006 10 49 61 103 455HVA0940 h
9.50 +0.021/+0.006 10 61 61 103 455HVA0950 h
9.80 +0.021/+0.006 10 61 61 103 455HVA0980 h
HSS
DRILLS 10.00 +0.021/+0.006 10 61 61 103 455HVA1000 h
10.20 +0.025/+0.007 12 71 71 118 455HVA1020 h
LFTA 10.30 +0.025/+0.007 12 71 71 118 455HVA1030 h
SUTA
10.40 +0.025/+0.007 12 71 71 118 455HVA1040 h
HSS-HSS/CO
10.50 +0.025/+0.007 12 71 71 118 455HVA1050 h
10.80 +0.025/+0.007 12 71 71 118 455HVA1080 h
11.00 +0.025/+0.007 12 71 71 118 455HVA1100 h
11.20 +0.025/+0.007 12 71 71 118 455HVA1120 h
11.30 +0.025/+0.007 12 71 71 118 455HVA1130 h
11.50 +0.025/+0.007 12 71 71 118 455HVA1150 h
11.80 +0.025/+0.007 12 71 71 118 455HVA1180 h
CARBIDE
END-MILLS 12.00 +0.025/+0.007 12 71 71 118 455HVA1200 h
12.20 +0.025/+0.007 14 77 77 124 455HVA1220 h
G2
12.50 +0.025/+0.007 14 77 77 124 455HVA1250 h
MDTA
HF VH/UP 13.00 +0.025/+0.007 14 77 77 124 455HVA1300 h
MEF 13.50 +0.025/+0.007 14 77 77 124 455HVA1350 h
ALU 14.00 +0.025/+0.007 14 77 77 124 455HVA1400 h
MEX
UH 14.20 +0.025/+0.007 16 83 83 133 455HVA1420 h
14.50 +0.025/+0.007 16 83 83 133 455HVA1450 h
15.00 +0.025/+0.007 16 83 83 133 455HVA1500 h
15.50 +0.025/+0.007 16 83 83 133 455HVA1550 h
16.00 +0.025/+0.007 16 83 83 133 455HVA1600 h

HSS
END-MILLS

CARBIDE
BURRS

h stock standard f non-standard stock m stock exhaustion
