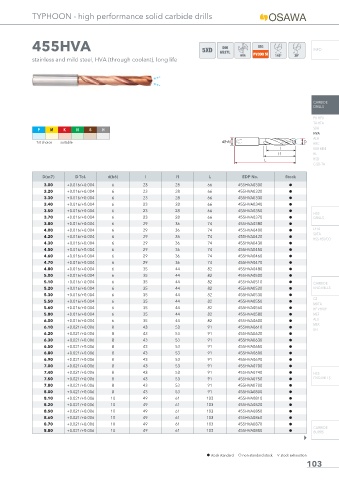

TYPHOON - high performance solid carbide drills

455HVA 5XD DIN INFO
6537L
HVA PV300 Si
stainless and mild steel, HVA (through coolant), long life

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
H H
ALH
H 1st choice I suitable HRC
SUH MINI
HL
HSD
C-SD-TA
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
3.00 +0.016/+0.004 6 23 28 66 455HVA0300 h
3.20 +0.016/+0.004 6 23 28 66 455HVA0320 h
3.30 +0.016/+0.004 6 23 28 66 455HVA0330 h
3.40 +0.016/+0.004 6 23 28 66 455HVA0340 h
3.50 +0.016/+0.004 6 23 28 66 455HVA0350 h
HSS
3.70 +0.016/+0.004 6 23 28 66 455HVA0370 h DRILLS
3.80 +0.016/+0.004 6 29 36 74 455HVA0380 h
4.00 +0.016/+0.004 6 29 36 74 455HVA0400 h LFTA
SUTA
4.20 +0.016/+0.004 6 29 36 74 455HVA0420 h
HSS-HSS/CO
4.30 +0.016/+0.004 6 29 36 74 455HVA0430 h
4.50 +0.016/+0.004 6 29 36 74 455HVA0450 h
4.60 +0.016/+0.004 6 29 36 74 455HVA0460 h
4.70 +0.016/+0.004 6 29 36 74 455HVA0470 h
4.80 +0.016/+0.004 6 35 44 82 455HVA0480 h
5.00 +0.016/+0.004 6 35 44 82 455HVA0500 h
5.10 +0.016/+0.004 6 35 44 82 455HVA0510 h CARBIDE
5.20 +0.016/+0.004 6 35 44 82 455HVA0520 h END-MILLS
5.30 +0.016/+0.004 6 35 44 82 455HVA0530 h
G2
5.50 +0.016/+0.004 6 35 44 82 455HVA0550 h
MDTA
5.60 +0.016/+0.004 6 35 44 82 455HVA0560 h HF VH/UP
5.80 +0.016/+0.004 6 35 44 82 455HVA0580 h MEF
6.00 +0.016/+0.004 6 35 44 82 455HVA0600 h ALU
MEX
6.10 +0.021/+0.006 8 43 53 91 455HVA0610 h
UH
6.20 +0.021/+0.006 8 43 53 91 455HVA0620 h
6.30 +0.021/+0.006 8 43 53 91 455HVA0630 h
6.50 +0.021/+0.006 8 43 53 91 455HVA0650 h
6.80 +0.021/+0.006 8 43 53 91 455HVA0680 h
6.90 +0.021/+0.006 8 43 53 91 455HVA0690 h
7.00 +0.021/+0.006 8 43 53 91 455HVA0700 h
7.40 +0.021/+0.006 8 43 53 91 455HVA0740 h HSS
7.50 +0.021/+0.006 8 43 53 91 455HVA0750 h END-MILLS
7.80 +0.021/+0.006 8 43 53 91 455HVA0780 h
8.00 +0.021/+0.006 8 43 53 91 455HVA0800 h
8.10 +0.021/+0.006 10 49 61 103 455HVA0810 h
8.20 +0.021/+0.006 10 49 61 103 455HVA0820 h
8.50 +0.021/+0.006 10 49 61 103 455HVA0850 h
8.60 +0.021/+0.006 10 49 61 103 455HVA0860 h
8.70 +0.021/+0.006 10 49 61 103 455HVA0870 h
CARBIDE
8.80 +0.021/+0.006 10 49 61 103 455HVA0880 h BURRS

h stock standard f non-standard stock m stock exhaustion
