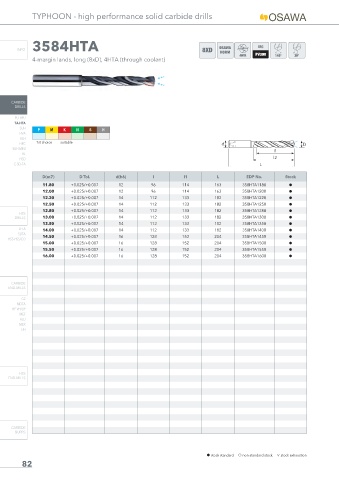

TYPHOON - high performance solid carbide drills

INFO 3584HTA 8XD OSAWA
NORM
4-margin lands, long (8xD), 4HTA (through coolant)

CARBIDE
DRILLS

PU-HPU
TA-HTA
SUH
P M K N S H
HVA
ALH H H H I I
HRC H 1st choice I suitable
SUH MINI
HL
HSD
C-SD-TA
D(m7) D Tol. d(h6) l l1 L EDP No. Stock
11.80 +0.025/+0.007 12 96 114 163 358HTA1180 h
12.00 +0.025/+0.007 12 96 114 163 358HTA1200 h
12.20 +0.025/+0.007 14 112 133 182 358HTA1220 h
12.50 +0.025/+0.007 14 112 133 182 358HTA1250 h
12.80 +0.025/+0.007 14 112 133 182 358HTA1280 h
HSS
DRILLS 13.00 +0.025/+0.007 14 112 133 182 358HTA1300 h
13.50 +0.025/+0.007 14 112 133 182 358HTA1350 h
LFTA
14.00 +0.025/+0.007 14 112 133 182 358HTA1400 h
SUTA
14.50 +0.025/+0.007 16 128 152 204 358HTA1450 h
HSS-HSS/CO
15.00 +0.025/+0.007 16 128 152 204 358HTA1500 h
15.50 +0.025/+0.007 16 128 152 204 358HTA1550 h
16.00 +0.025/+0.007 16 128 152 204 358HTA1600 h

CARBIDE
END-MILLS
G2
MDTA
HF VH/UP
MEF
ALU
MEX
UH

HSS
END-MILLS

CARBIDE
BURRS

h stock standard f non-standard stock m stock exhaustion
