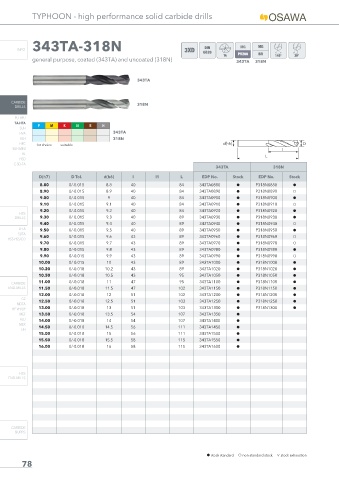

TYPHOON - high performance solid carbide drills

INFO 343TA-318N 3XD 6539
DIN
general purpose, coated (343TA) and uncoated (318N) 343TA 318N

343TA

CARBIDE 318N
DRILLS

PU-HPU
TA-HTA
P M K N S H
SUH
HVA H I I I 343TA
ALH H I I I 318N
HRC H 1st choice I suitable
SUH MINI
HL
HSD
C-SD-TA
343TA 318N
D(h7) D Tol. d(h6) l l1 L EDP No. Stock EDP No. Stock
8.80 0/-0.015 8.8 40 84 343TA0880 h P318N0880 h
8.90 0/-0.015 8.9 40 84 343TA0890 h P318N0890 f
9.00 0/-0.015 9 40 84 343TA0900 h P318N0900 h
9.10 0/-0.015 9.1 40 84 343TA0910 h P318N0910 f
9.20 0/-0.015 9.2 40 84 343TA0920 h P318N0920 h
HSS
DRILLS 9.30 0/-0.015 9.3 40 89 343TA0930 h P318N0930 h
9.40 0/-0.015 9.4 40 89 343TA0940 h P318N0940 f
LFTA
9.50 0/-0.015 9.5 40 89 343TA0950 h P318N0950 h
SUTA
9.60 0/-0.015 9.6 43 89 343TA0960 h P318N0960 f
HSS-HSS/CO
9.70 0/-0.015 9.7 43 89 343TA0970 h P318N0970 f
9.80 0/-0.015 9.8 43 89 343TA0980 h P318N0980 h
9.90 0/-0.015 9.9 43 89 343TA0990 h P318N0990 f
10.00 0/-0.015 10 43 89 343TA1000 h P318N1000 h
10.20 0/-0.018 10.2 43 89 343TA1020 h P318N1020 h
10.50 0/-0.018 10.5 43 95 343TA1050 h P318N1050 h
CARBIDE 11.00 0/-0.018 11 47 95 343TA1100 h P318N1100 h
END-MILLS 11.50 0/-0.018 11.5 47 102 343TA1150 h P318N1150 h
12.00 0/-0.018 12 51 102 343TA1200 h P318N1200 h
G2
MDTA 12.50 0/-0.018 12.5 51 103 343TA1250 h P318N1250 h
HF VH/UP 13.00 0/-0.018 13 51 103 343TA1300 h P318N1300 h
MEF 13.50 0/-0.018 13.5 54 107 343TA1350 h
ALU 14.00 0/-0.018 14 54 107 343TA1400 h
MEX
14.50 0/-0.018 14.5 56 111 343TA1450 h
UH
15.00 0/-0.018 15 56 111 343TA1500 h
15.50 0/-0.018 15.5 58 115 343TA1550 h
16.00 0/-0.018 16 58 115 343TA1600 h

HSS
END-MILLS

CARBIDE
BURRS

h stock standard f non-standard stock m stock exhaustion
